4956-0.5-5

Obsolete

3M (TC)

TAPE DBL SIDED GRAY 1/2"X5YDS

Search across all available documentation for this part.

Obsolete

3M (TC)

TAPE DBL SIDED GRAY 1/2"X5YDS

Technical Specifications

Parameters and characteristics for this part

Specification	4956-0.5-5

Adhesive	Acrylic
Backing, Carrier	Paper
Color	Gray
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	93 °C
Temperature Range	200 °F
Thickness	1.575 mm
Thickness	0.062 in
Thickness	62 mils
Thickness - Adhesive	0.059 in
Thickness - Adhesive	59 mils
Thickness - Adhesive	1.499 mm
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Width	0.5 in
Width	12.7 mm
Width	0.5 in

Part	Length	Length	Length	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Tape Type	Thickness	Thickness	Thickness	Usage	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width	Width	Width	Shelf Life	Shelf Life Start	Color	Temperature Range	Temperature Range
3M (TC) 4956-GRAY-3/4"X36YD	36 yd	32.9 m	108 ft	4 °C 40 °F	38 °C 100 °F	Paper	Double Coated Double Sided	1.575 mm	0.062 in	62 mils	General Purpose	Acrylic	0.059 in	59 mils	1.499 mm	0.003 in	3 mils	0.076 mm	0.75 in	19.05 mm	0.75 in	24 Months	Date of Manufacture	Gray	200 °F	93 °C
3M (TC) 4956-0.5-5	5 yd	4.6 m	15 ft	4 °C 40 °F	38 °C 100 °F	Paper	Double Coated Double Sided	1.575 mm	0.062 in	62 mils		Acrylic	0.059 in	59 mils	1.499 mm	0.003 in	3 mils	0.076 mm	0.5 in	0.5 in	12.7 mm	24 Months	Date of Shipment	Gray	200 °F	93 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

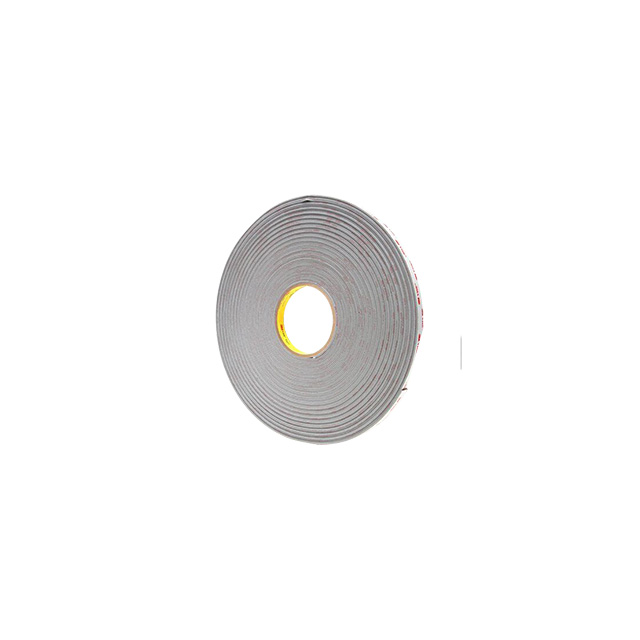

Double Coated, Double Sided Tape Acrylic Adhesive Gray 0.50" (12.70mm) 1/2" X 15' (4.6m) 5 yds
