Q-0303H0003072i

Active

Amphenol Custom Cable

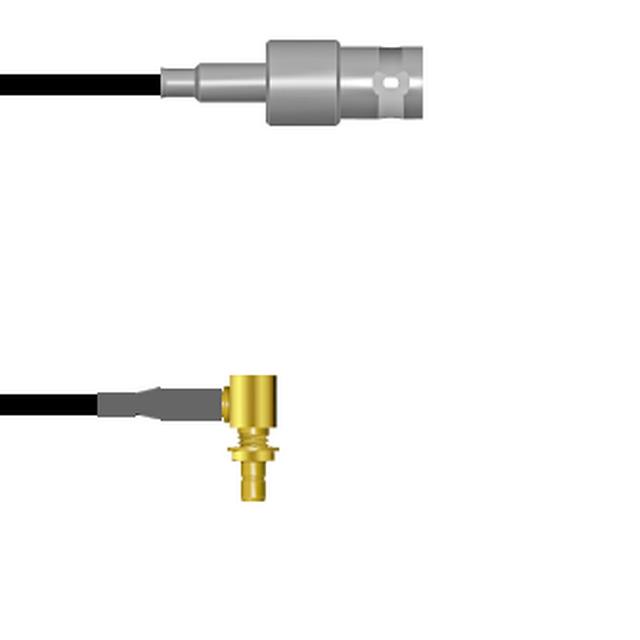

CBL ASSY BNC-SMB JACK-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0303H0003072i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JACK-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0303H0003072i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMB Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0303H0 Series

Part	Cable Type	Color	Length	Length	Length	2nd Connector	1st Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Type	Style	1st Connector Mounting Type	2nd Connector Mounting Feature	Features	1st Connector	Overall Impedance	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0303H0003072i	RG-174	Black	6 ft	72 in	1.8 m	SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female
Amphenol Custom Cable Q-0303H0005084i	RG-316	Copper	7 ft	84 in	2.1 m	SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female
Amphenol Custom Cable Q-0303H0005018i	RG-316	Copper				SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0303H0003018i	RG-174	Black				SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0303H0005024i	RG-316	Copper		24 "	609.6 mm	SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female
Amphenol Custom Cable Q-0303H0005001M	RG-316	Copper	3.3 ft	39.4 in	1 m	SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female
Amphenol Custom Cable Q-0303H0005009i	RG-316	Copper		9 "	228.6 mm	SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female
Amphenol Custom Cable Q-0303H00052.5M	RG-316	Copper	8.2 '	98.4 in	2.5 m	SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female
Amphenol Custom Cable Q-0303H0005006i	RG-316	Copper		6 in	152.4 mm	SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female
Amphenol Custom Cable Q-0303H0003036i	RG-174	Black		36 in	91.44 cm	SMB Jack Right Angle	Female	4 GHz	Panel Mount	BNC to SMB	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	BNC Jack	50 Ohms	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 102.75
		25	$ 100.75
		50	$ 98.74
		100	$ 96.74
		250	$ 94.74

Description

General part information

Q-0303H0 Series

Cable Assembly Coaxial BNC to SMB RG-174 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
