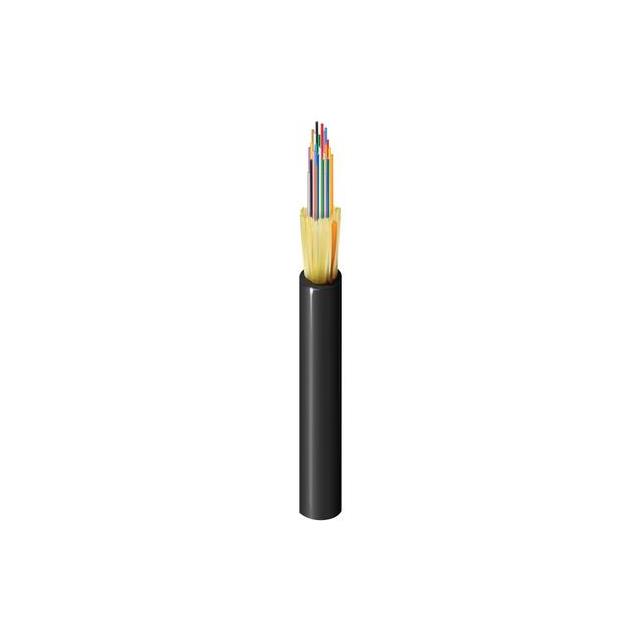

FD1D024L9

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FD1D024L9

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	62.5 µm
Features	24
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	8.26 mm
Jacket (Insulation) Diameter [diameter]	0.325 in
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Multimode

Part	Style	Operating Temperature [Min]	Operating Temperature [Max]	Type	Features	Features	Tensile Strength	Cladding Diameter [diameter]	Ratings	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Core Diameter [diameter]
Belden Inc. FD1D024RJ	Multiple Fibers	-40 °C	70 °C	Multimode	24	Rip Cord	81.6 kg	125 µm	OFNR	Poly-Vinyl Chloride (PVC)	Black	0.562 "	14.27 mm	62.5 µm
Belden Inc. FD1D024PJ	Multiple Fibers	-40 °C	70 °C	Multimode	24	Rip Cord	81.6 kg	125 µm	OFNP	Poly-Vinyl Chloride (PVC)	Black	0.527 in	13.39 mm	62.5 µm
Belden Inc. FD1D024F9	Multiple Fibers	-40 °C	70 °C	Multimode	24	Armored	40.8 kg	125 µm	OFCR	Poly-Vinyl Chloride (PVC)	Black	0.6 in	15.24 mm	62.5 µm
Belden Inc. FD1D024P9	Multiple Fibers	-40 °C	70 °C	Multimode	24	Rip Cord	40.8 kg	125 µm	OFNP	Poly-Vinyl Chloride (PVC)	Black	0.33 in	8.38 mm	62.5 µm
Belden Inc. FD1D024AJ	Multiple Fibers	-40 °C	70 °C	Multimode	24	Armored	81.6 kg	125 µm	OFCP	Poly-Vinyl Chloride (PVC)	Black	0.527 in	13.39 mm	62.5 µm
Belden Inc. FD1D024FJ	Multiple Fibers	-40 °C	70 °C	Multimode	24	Armored	81.6 kg	125 µm	OFCR	Poly-Vinyl Chloride (PVC)	Black	0.96 in	24.38 mm	62.5 µm
Belden Inc. FD1D024R9	Multiple Fibers	-40 °C	70 °C	Multimode	24	Rip Cord	40.8 kg	125 µm	OFNR	Poly-Vinyl Chloride (PVC)	Black	0.325 in	8.26 mm	62.5 µm
Belden Inc. FD1D024L9	Multiple Fibers	-40 °C	70 °C	Multimode	24	Rip Cord	40.8 kg	125 µm	OFNR		Black	0.325 in	8.26 mm	62.5 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 6.32

General part information

Fiber Optic Cable Black Multimode 125µm
