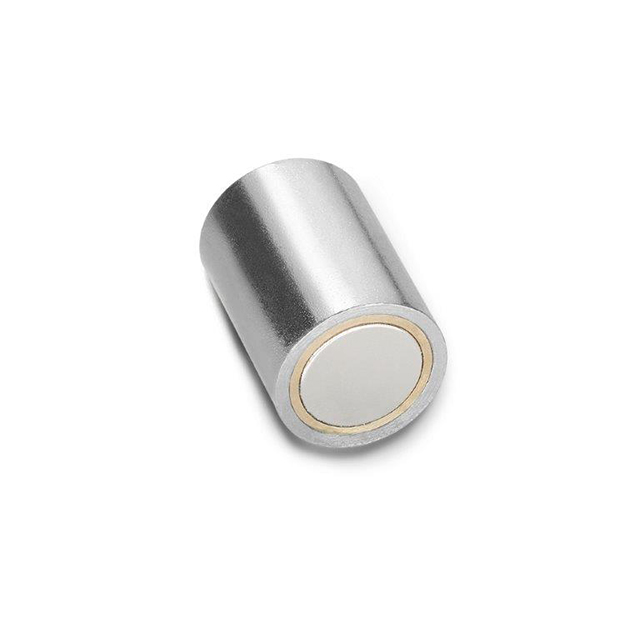

52.1-ND-16-2

Active

J.W. Winco

MAGNET 0.630"D X 0.787"THICK CYL

Search across all available documentation for this part.

Active

J.W. Winco

MAGNET 0.630"D X 0.787"THICK CYL

Technical Specifications

Parameters and characteristics for this part

Part	Material	Shape	Size [z]	Size [z]	Size [diameter]	Size [diameter]	Finish	Operating Temperature
J.W. Winco 52.1-ND-13-2	Neodymium Iron Boron (NdFeB)	Cylindrical	0.787 in	20 mm	13 mm	0.512 in	Stainless Steel	80 °C
J.W. Winco 52.1-ND-16-1	Neodymium Iron Boron (NdFeB)	Cylindrical	0.787 in	20 mm	16 mm	0.63 in	Steel Zinc	80 °C
J.W. Winco 52.1-ND-10-2	Neodymium Iron Boron (NdFeB)	Cylindrical	0.787 in	20 mm	10 mm	0.394 in	Stainless Steel	80 °C
J.W. Winco 52.1-ND-6-1	Neodymium Iron Boron (NdFeB)	Cylindrical					Steel Zinc	80 °C
J.W. Winco 52.1-ND-20-1	Neodymium Iron Boron (NdFeB)	Cylindrical	0.984 in	25 mm	20 mm	0.787 in	Steel Zinc	80 °C
J.W. Winco 52.1-ND-25-2	Neodymium Iron Boron (NdFeB)	Cylindrical	1.378 in	35 mm	25 mm	0.984 in	Stainless Steel	80 °C
J.W. Winco 52.1-ND-6-2	Neodymium Iron Boron (NdFeB)	Cylindrical					Stainless Steel	80 °C
J.W. Winco 52.1-ND-32-1	Neodymium Iron Boron (NdFeB)	Cylindrical	1.575 in	40 mm	32 mm	1.26 in	Steel Zinc	80 °C
J.W. Winco 52.1-ND-8-1	Neodymium Iron Boron (NdFeB)	Cylindrical	0.787 in	20 mm	8 mm	0.315 "	Steel Zinc	80 °C
J.W. Winco 52.1-ND-16-2	Neodymium Iron Boron (NdFeB)	Cylindrical	0.787 in	20 mm	16 mm	0.63 in	Stainless Steel	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.95

General part information

Magnet Neodymium Iron Boron (NdFeB) 0.630" Dia x 0.787" H (16.00mm x 20.00mm)
