C14610A03250010

Active

Amphenol Tuchel Industrial

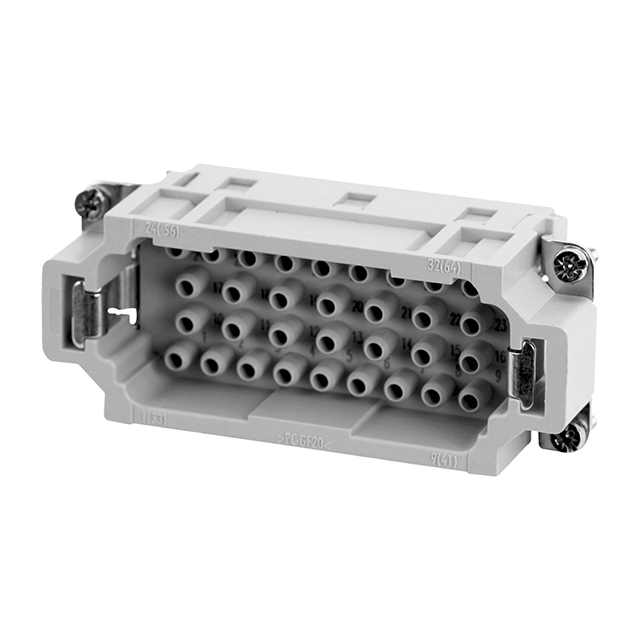

INSERT MALE 32POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 32POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A03250010

Color	Gray
Connector Type	Insert without Contacts
Contact Type	heavy\|mate®, C146 E, EE
Current Rating (Amps)	15 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E16
Termination Style	Crimp
Voltage Rating	600 V

Part	Voltage Rating	Material Flammability Rating	Gender	Contact Type	Size	Current Rating (Amps)	Color	Connector Type	Housing Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C14610A03250010	600 V	UL94 V-0	Male	heavy\|mate® C146 E EE	E16	15 A	Gray	Insert without Contacts	Polycarbonate (PC)	Crimp	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 18.90

General part information

Male Insert without Contacts Gray 32+Ground Position Crimp
