430764-505
Laird Thermal Systems, Inc.

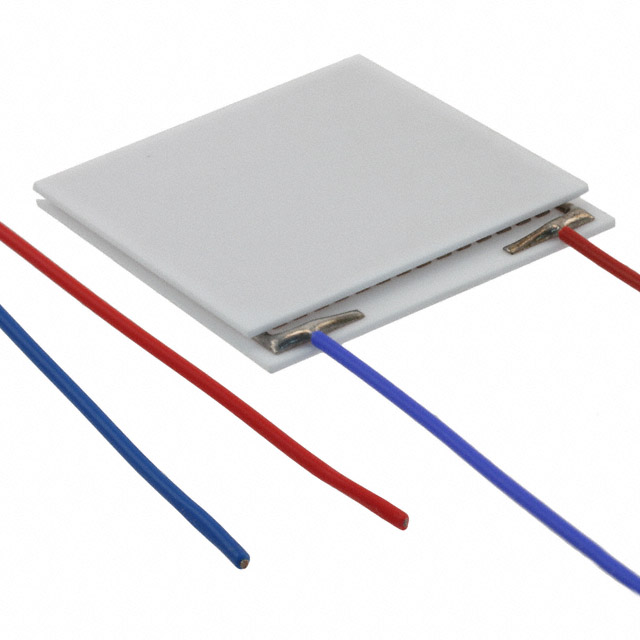

PELTIER UT15,12,F2,4040,TA,W6
Deep-Dive with AI
Search across all available documentation for this part.
430764-505
Laird Thermal Systems, Inc.
PELTIER UT15,12,F2,4040,TA,W6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430764-505 |
|---|---|
| Current - Max [Max] | 14.7 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.84 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Resistance | 910 mOhms |
| Size / Dimension [x] | 43.9 mm |
| Size / Dimension [y] | 39.9 mm |
| Voltage - Max [Max] | 14.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.24 | |
| 5 | $ 44.40 | |||
| 10 | $ 43.23 | |||
| 25 | $ 41.73 | |||
| 50 | $ 40.63 | |||
| 100 | $ 39.56 | |||
Description
General part information
430764 Series
Peltier Module 126.2W @ 25°C 14.7 A 80°C
Documents
Technical documentation and resources
