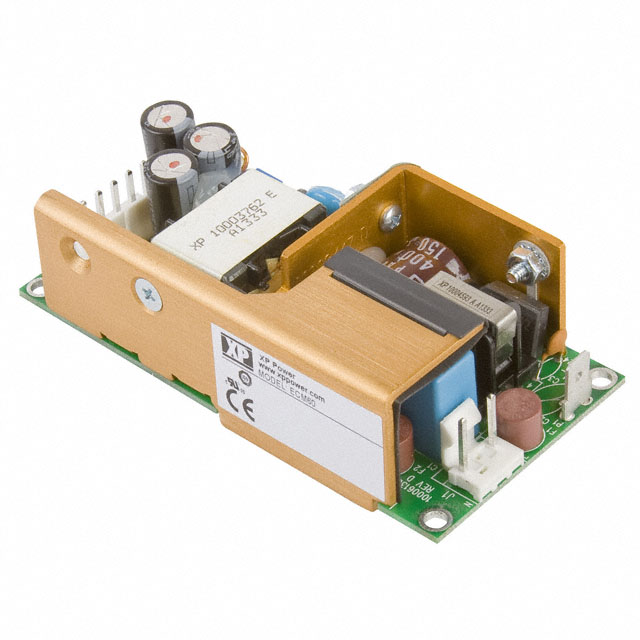

ECM60UD21 - ECM60

ECM60UD21

Active
XP POWER

AC/DC CONVERTER 5V 12V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECM(40 - 100) Series UL CertificateECM(40 - 100) Series TUV Certificate+1
ECM60UD21 - ECM60

ECM60UD21

Active
XP POWER

AC/DC CONVERTER 5V 12V 60W

Deep-Dive with AI

DocumentsECM(40 - 100) Series UL CertificateECM(40 - 100) Series TUV Certificate+1

Technical Specifications

Parameters and characteristics for this part

SpecificationECM60UD21
ApplicationsITE (Commercial), Medical
Approval AgencyCE, CB
Current - Output 18 A
Current - Output 23 A
Efficiency80 %
FeaturesAdjustable Output, Universal Input
Minimum Load RequiredTrue
Mounting TypeChassis Mount
Number of Outputs2
Operating Temperature [Max]70 °C
Operating Temperature [Min]0 °C
Size / Dimension [x]101.6 mm
Size / Dimension [x]4 in
Size / Dimension [y]2 in
Size / Dimension [y]50.8 mm
Size / Dimension [z]30.5 mm
Size / Dimension [z]1.2 "
Standard Number62368-1
TypeOpen Frame
Voltage - Input [Max]264 VAC
Voltage - Input [Min]90 VAC
Voltage - Isolation4000 V
Voltage - Output 15 V
Voltage - Output 212 V

ECM60 Series

PartFeaturesCurrent - Output 1ApplicationsNumber of OutputsMounting TypeVoltage - IsolationEfficiencyApproval AgencyTypeMinimum Load RequiredOperating Temperature [Max]Operating Temperature [Min]Voltage - Input [Min]Voltage - Input [Max]Voltage - Output 1Standard NumberSize / Dimension [x]Size / Dimension [y]Size / Dimension [z]Size / Dimension [x]Size / Dimension [y]Size / Dimension [z]Voltage - Output 3Current - Output 3Current - Output 2Voltage - Output 2
XP POWER
ECM60US24-C
Adjustable Output
Universal Input
2.5 A
ITE (Commercial)
Medical
1
Chassis Mount
4000 V
80 %
CB
CE
TUV
UL
Enclosed
70 °C
0 °C
90 VAC
264 VAC
24 V
62368-1
XP POWER
ECM60US07
Adjustable Output
Universal Input
8.6 A
ITE (Commercial)
Medical
1
Chassis Mount
4000 V
80 %
CB
CE
Open Frame
70 °C
0 °C
90 VAC
264 VAC
7 V
62368-1
101.6 mm
2 in
30.5 mm
4 in
50.8 mm
1.2 "
XP POWER
ECM60US24
Adjustable Output
Universal Input
2.5 A
ITE (Commercial)
Medical
1
Chassis Mount
4000 V
80 %
CB
CE
Open Frame
70 °C
0 °C
90 VAC
264 VAC
24 V
62368-1
101.6 mm
2 in
30.5 mm
4 in
50.8 mm
1.2 "
XP POWER
ECM60US48
Adjustable Output
Universal Input
1.25 A
ITE (Commercial)
Medical
1
Chassis Mount
4000 V
80 %
CB
CE
Open Frame
70 °C
0 °C
90 VAC
264 VAC
48 V
62368-1
101.6 mm
2 in
30.5 mm
4 in
50.8 mm
1.2 "
XP POWER
ECM60US33
Adjustable Output
Universal Input
1.8 A
ITE (Commercial)
Medical
1
Chassis Mount
4000 V
80 %
CB
CE
Open Frame
70 °C
0 °C
90 VAC
264 VAC
33 V
62368-1
101.6 mm
2 in
30.5 mm
4 in
50.8 mm
1.2 "
XP POWER
ECM60US09
Adjustable Output
Universal Input
6.7 A
ITE (Commercial)
Medical
1
Chassis Mount
4000 V
80 %
CB
CE
Open Frame
70 °C
0 °C
90 VAC
264 VAC
9 V
62368-1
101.6 mm
2 in
30.5 mm
4 in
50.8 mm
1.2 "
XP POWER
ECM60US05
Adjustable Output
Universal Input
12 A
ITE (Commercial)
Medical
1
Chassis Mount
4000 V
80 %
CB
CE
Open Frame
70 °C
0 °C
90 VAC
264 VAC
5 V
62368-1
101.6 mm
2 in
30.5 mm
4 in
50.8 mm
1.2 "
XP POWER
ECM60UT31
Adjustable Output
Universal Input
8 A
ITE (Commercial)
Medical
3
Chassis Mount
4000 V
CB
CE
Open Frame
70 °C
0 °C
90 VAC
264 VAC
5 V
62368-1
101.6 mm
2 in
30.5 mm
4 in
50.8 mm
1.2 "
-12 V
500 mA
3 A
12 V
XP POWER
ECM60US12-C
Adjustable Output
Universal Input
5 A
ITE (Commercial)
Medical
1
Chassis Mount
4000 V
80 %
CB
CE
TUV
UL
Enclosed
70 °C
0 °C
90 VAC
264 VAC
12 V
62368-1
XP POWER
ECM60UD21
Adjustable Output
Universal Input
8 A
ITE (Commercial)
Medical
2
Chassis Mount
4000 V
80 %
CB
CE
Open Frame
70 °C
0 °C
90 VAC
264 VAC
5 V
62368-1
101.6 mm
2 in
30.5 mm
4 in
50.8 mm
1.2 "
3 A
12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 63.50
5$ 61.60
10$ 59.69
25$ 57.15
100$ 53.34

Description

General part information

ECM60 Series

Open Frame AC DC Converters 2 Output 5V 12V 90 ~ 264 VAC Input
