430001-505

Active

Laird Thermal Systems, Inc.

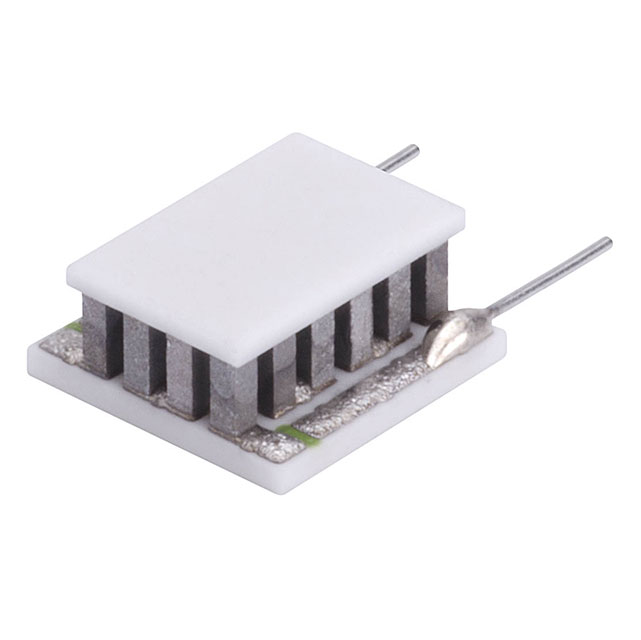

PELTIER OT12,12,F0,0406,GG,W2.25

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER OT12,12,F0,0406,GG,W2.25

Technical Specifications

Parameters and characteristics commom to parts in this series

PELTIER OT12,12,F0,0406,GG,W2.25

Part	Features	Delta Tmax @ Th	Voltage - Max [Max]	Qmax @ Th	Operating Temperature	Height [z]	Resistance	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Number of Stages
Laird Thermal Systems, Inc. 430001-505	Lead Wires, Non-Sealed	67 °C	1.4 V	1 W	80 °C	3.02 mm	1.04 Ohms	1.2 A	6.2 mm	6.2 mm	1
Laird Thermal Systems, Inc. 430001-501	Lead Wires, Non-Sealed	67 °C	1.4 V	1 W	80 °C	2.69 mm	1.04 Ohms	1.2 A	6.2 mm	6.2 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 1.0W @ 25°C 1.2 A 80°C
