M2012S3S2W40

Obsolete

NKK Switches

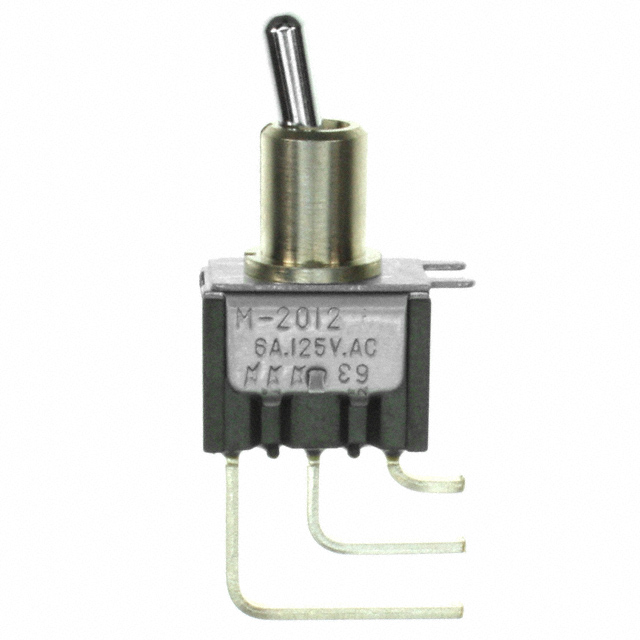

SWITCH TOGGLE SPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2012S3S2W40

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012S3S2W40

Actuator Length [x]	6.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2012S3 Series

Part	Voltage Rating - DC	Mounting Type	Actuator Length [x]	Actuator Type	Illumination	Current Rating (Amps)	Termination Style	Bushing Thread	Voltage Rating - AC	Electrical Life	Actuator Material	Switch Function	Features	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]
NKK Switches M2012S3S2W30	30 V	Through Hole Right Angle	6.5 mm	Standard Round	Non-Illuminated	4 A 6 A	PC Pin	Unthreaded	125 V	25000 Steps	Brass Chrome Plated	On-On	Epoxy Sealed Terminals	SPDT	-30 ░C	85 °C
NKK Switches M2012S3A1G13	28 V		8.28 mm	Standard Round	Non-Illuminated	0.4 VA	PC Pin	1/4-40	28 V	50000 Cycles	Brass Chrome Plated	On-On	Epoxy Sealed Terminals	SPDT	-30 ░C	85 °C	6.5 mm
NKK Switches M2012S3S1W03	30 V		6.5 mm	Standard Round	Non-Illuminated	4 A 6 A	PC Pin	1/4-40	125 V	25000 Steps	Brass Chrome Plated	On-On	Epoxy Sealed Terminals	SPDT	-30 ░C	85 °C	6.5 mm
NKK Switches M2012S3S2G13	28 V	Through Hole	6.5 mm	Standard Round	Non-Illuminated	0.4 VA	PC Pin	Unthreaded	28 V	50000 Cycles	Brass Chrome Plated	On-On	Epoxy Sealed Terminals	SPDT	-30 ░C	85 °C
NKK Switches M2012S3S1G06	28 V		6.5 mm	Standard Round	Non-Illuminated	0.4 VA	Wire Wrap	1/4-40	28 V	50000 Cycles	Brass Chrome Plated	On-On	Epoxy Sealed Terminals	SPDT	-30 ░C	85 °C	6.5 mm
NKK Switches M2012S3S2G30	28 V	Through Hole Right Angle	6.5 mm	Standard Round	Non-Illuminated	0.4 VA	PC Pin	Unthreaded	28 V	50000 Cycles	Brass Chrome Plated	On-On	Epoxy Sealed Terminals	SPDT	-30 ░C	85 °C
NKK Switches M2012S3S2W40	30 V	Right Angle Through Hole Vertical	6.5 mm	Standard Round	Non-Illuminated	4 A 6 A	PC Pin	Unthreaded	125 V	25000 Steps	Brass Chrome Plated	On-On	Epoxy Sealed Terminals	SPDT	-30 ░C	85 °C
NKK Switches M2012S3A2G13	28 V	Through Hole	8.28 mm	Standard Round	Non-Illuminated	0.4 VA	PC Pin	Unthreaded	28 V	50000 Cycles	Brass Chrome Plated	On-On	Epoxy Sealed Terminals	SPDT	-30 ░C	85 °C	6.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.04
		10	$ 4.49

Description

General part information

M2012S3 Series

Toggle Switch SPDT Through Hole, Right Angle, Vertical

Documents

Technical documentation and resources
