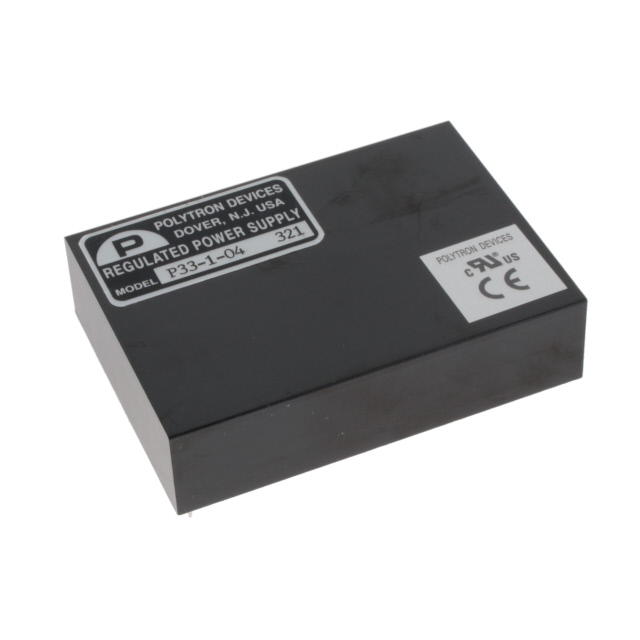

P33-1-04
ActiveDaburn Electronics
AC/DC CONVERTER +/-15V
Deep-Dive with AI
Search across all available documentation for this part.
P33-1-04
ActiveDaburn Electronics
AC/DC CONVERTER +/-15V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P33-1-04 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, UL |
| Current - Output (Max) | 100 mA |
| Current - Output (Max) | 100 mA |
| Features | SCP |
| Line Regulation | 0.02 % |
| Load Regulation | 0.02 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 7-DIP Module, 5 Leads |
| Size / Dimension [x] | 3.5 in |
| Size / Dimension [x] | 88.9 mm |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [z] | 0.88 in |
| Size / Dimension [z] | 22.4 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 125 VAC |
| Voltage - Input [Min] | 105 VAC |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 158.14 | |
Description
General part information
P33-1 Series
Enclosed AC DC Converters 2 Output 15V 100mA, 100mA 105 ~ 125 VAC Input
