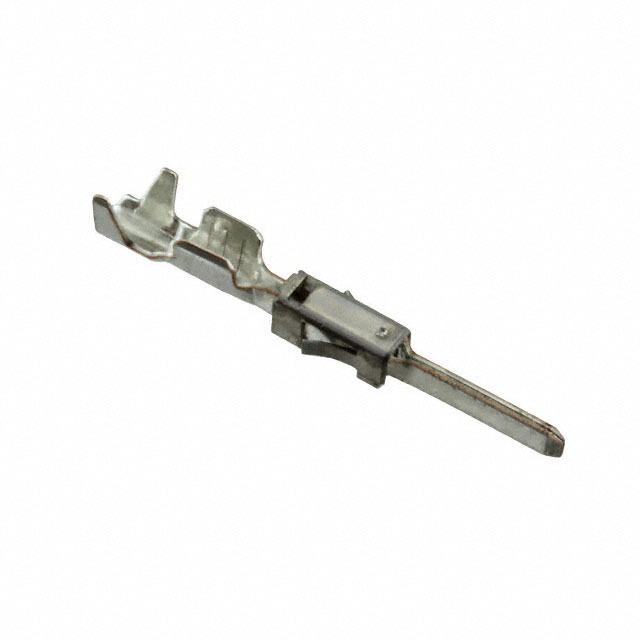

963900-1
ActiveTE Connectivity AMP Connectors
CONN TAB 17-20AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
963900-1
ActiveTE Connectivity AMP Connectors
CONN TAB 17-20AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 963900-1 | 963900 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | - | 31.5 µin |
| Contact Finish Thickness | - | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Tab | Tab |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.31 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.16 | |||
| Tape & Reel (TR) | 6000 | $ 0.12 | ||
| 12000 | $ 0.11 | |||
| 18000 | $ 0.11 | |||
| 30000 | $ 0.11 | |||
| 42000 | $ 0.10 | |||
| 60000 | $ 0.10 | |||
963900 Series
CONN TAB 17-20AWG CRIMP TIN
| Part | Contact Finish | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 963900-2 | Tin | Tab | 17 AWG | 20 AWG | Crimp | ||
TE Connectivity AMP Connectors 963900-3 | Gold | Tab | 17 AWG | 20 AWG | Crimp | 31.5 µin | 0.8 µm |
TE Connectivity AMP Connectors 963900-1 | Tin | Tab | 17 AWG | 20 AWG | Crimp |
Description
General part information
963900 Series
Tab Contact Tin 17-20 AWG Crimp
