6771312323F

Active

DIALIGHT

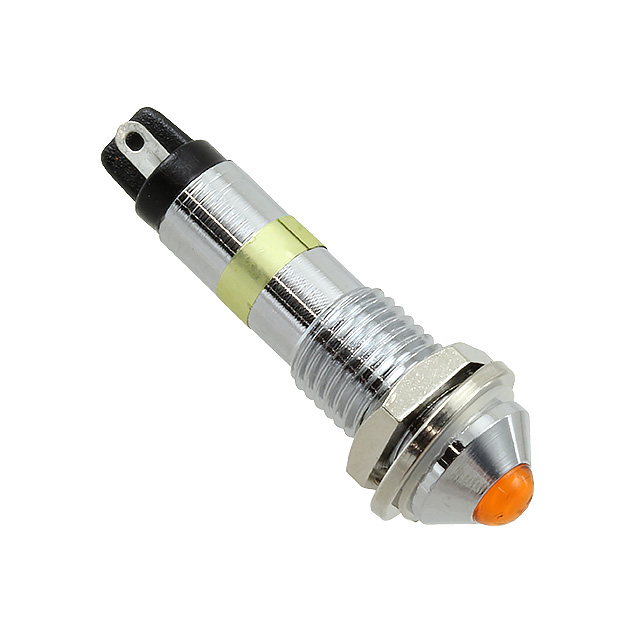

7MM HO/O PMI-6VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HO/O PMI-6VDC W/O-RING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Orange 6V 30mA Solder Lug

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	6771312323F	6771312 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Orange	Orange
Lens Size [diameter]	4 mm	4 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	560 mcd	560 - 3500 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	25 °
Voltage	6 V	6 - 24 V
Wavelength - Peak	-	605 nm

7MM HO/O PMI-6VDC W/O-RING

Part	Ratings	Current	Ingress Protection	Lens Style	Termination Style	Millicandela Rating	Lamp Color	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Voltage	Panel Cutout Shape	Type	Lens Size [diameter]	Viewing Angle	Wavelength - Peak	Panel Cutout Dimensions	Panel Cutout Dimensions
DIALIGHT 6771312323F	DC	30 mA	IP66, NEMA 4X	Round with Domed Top	Solder Lug	560 mcd	Orange	7.11 mm	0.28 "	6 V	Round	LED	4 mm
DIALIGHT 6771312333F	DC	30 mA	IP66, NEMA 4X	Round with Domed Top	Solder Lug	3500 mcd	Orange			12 V	Round	LED	4 mm	25 °	605 nm	7.2 mm	0.28 in
DIALIGHT 6771312343F	DC	30 mA	IP66, NEMA 4X	Round with Domed Top	Solder Lug	560 mcd	Orange			24 V	Round	LED	4 mm	25 °	605 nm	7.2 mm	0.28 in
