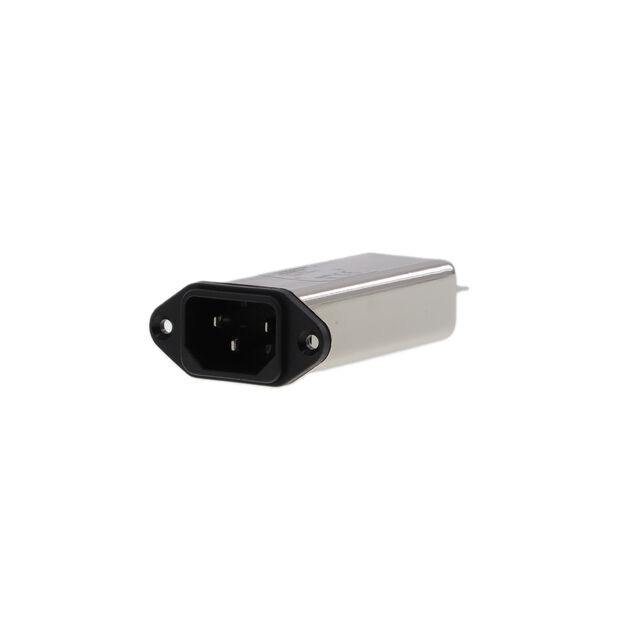

FN9255EB-2-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	FN9255EB-2-06

Accomodates a Fuse	False
Approval Agency	CQC, CE, UR, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	10 A
Features	Front Side Mount, Earth Line Choke
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Part	Features	Connector Type	Filter Type	Connector Style	Ingress Protection	Termination	Termination	Termination	Current Rating - Filter	Approval Agency	Mounting Type	Material Flammability Rating
TE Connectivity Raychem Cable Protection FN9255EB-15-06	Earth Line Choke Front Side Mount	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	IP40	0.25 in	6.3 mm	Quick Connect	15 A	CE CQC ENEC UR	Flange Panel Mount	UL94 V-0
TE Connectivity Raychem Cable Protection FN9255EB-2-06	Earth Line Choke Front Side Mount	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	IP40	0.25 in	6.3 mm	Quick Connect	10 A	CE CQC ENEC UR	Flange Panel Mount	UL94 V-0
TE Connectivity Raychem Cable Protection FN9255EB-4-06	Earth Line Choke Front Side Mount	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical	IEC 320-C14	IP40	0.25 in	6.3 mm	Quick Connect	4 A	CE CQC ENEC UR	Flange Panel Mount	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
