FR3K

Obsolete

SMC Diode Solutions

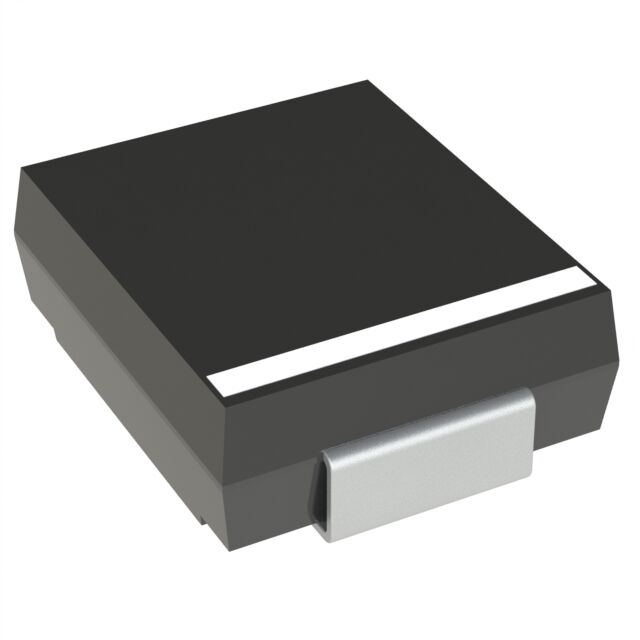

DIODE STANDARD 800V 3A DO214AB

Search across all available documentation for this part.

Obsolete

SMC Diode Solutions

DIODE STANDARD 800V 3A DO214AB

Technical Specifications

Parameters and characteristics for this part

Specification	FR3K

Capacitance @ Vr, F	60 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SMC, DO-214AB
Reverse Recovery Time (trr)	500 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AB (SMC)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Supplier Device Package	Capacitance @ Vr, F	Current - Average Rectified (Io)	Mounting Type	Package / Case	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If
SMC Diode Solutions FR3J	DO-214AB (SMC)	60 pF	3 A	Surface Mount	DO-214AB SMC	5 µA	600 V	200 mA 500 ns	150 °C	-65 C	Standard	250 ns	1.3 V
SMC Diode Solutions FR3G	DO-214AB (SMC)	60 pF	3 A	Surface Mount	DO-214AB SMC	5 µA	400 V	200 mA 500 ns	150 °C	-65 C	Standard	150 ns	1.3 V
SMC Diode Solutions FR3B	DO-214AB (SMC)	60 pF	3 A	Surface Mount	DO-214AB SMC	5 µA	100 V	200 mA 500 ns	150 °C	-65 C	Standard	150 ns	1.3 V
SMC Diode Solutions FR3K	DO-214AB (SMC)	60 pF	3 A	Surface Mount	DO-214AB SMC	5 µA	800 V	200 mA 500 ns	150 °C	-65 C	Standard	500 ns	1.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.11

General part information

Diode 800 V 3A Surface Mount DO-214AB (SMC)
