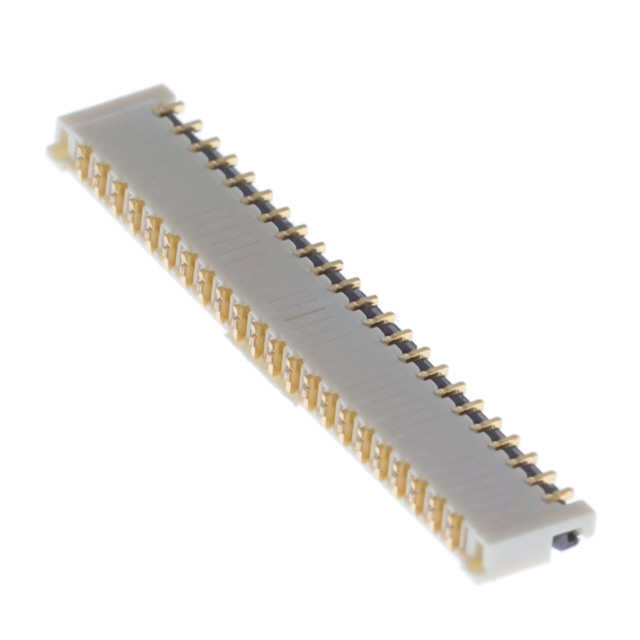

FB10S045JT1R6000
ObsoleteJAE Electronics
CONN FPC BOTTOM 45POS 0.3MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
FB10S045JT1R6000
ObsoleteJAE Electronics
CONN FPC BOTTOM 45POS 0.3MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FB10S045JT1R6000 |
|---|---|
| Actuator Color | Black |
| Actuator Material | Plastic |
| Cable End Type | Tabbed or Tapered |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.25 Áin |
| Contact Finish Thickness | 0.03 Ám |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.35 A |
| FFC, FCB Thickness | 0.2 mm |
| Flat Flex Type | FPC |
| Height Above Board | 0.88 mm |
| Height Above Board | 0.035 " |
| Housing Color | White |
| Housing Material | Plastic |
| Locking Feature | Flip Lock |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 45 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.012 in |
| Pitch [x] | 0.3 mm |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.74 | |
| 10 | $ 1.51 | |||
| 25 | $ 1.45 | |||
| 50 | $ 1.42 | |||
| 100 | $ 1.35 | |||
Description
General part information
FB10S045 Series
45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
