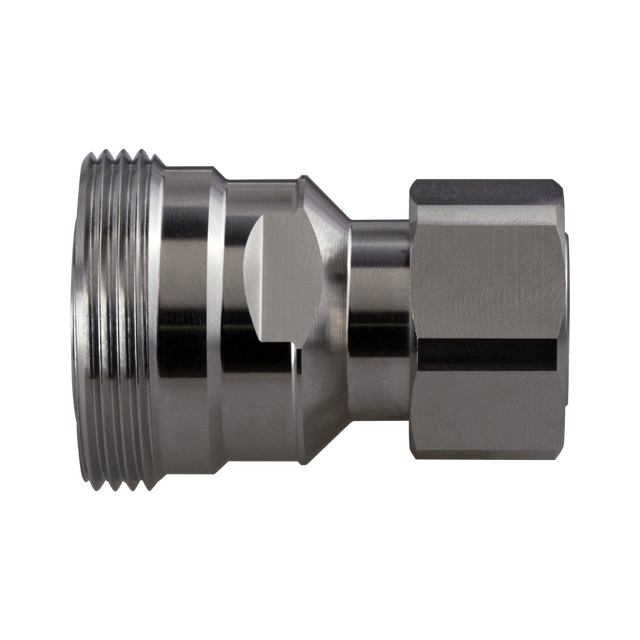

RFD-1688-4

Active

RF Industries

COAX ADAPT 7/16 DIN TO 4.3/10

Search across all available documentation for this part.

Active

RF Industries

COAX ADAPT 7/16 DIN TO 4.3/10

Technical Specifications

Parameters and characteristics for this part

Specification	RFD-1688-4

Adapter Series	7/16 DIN, 4.3/10
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	4.3/10 Plug, Male Pin
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Style	Straight

COAX ADAPT 7/16 DIN TO 4.3/10

Part	Convert From (Adapter End)	Adapter Type	Convert To (Adapter End)	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Conversion Type	Adapter Series	Mounting Type	Frequency - Max [Max]	Body Finish	Dielectric Material	Center Contact Material	Style	Body Material
RF Industries RFD-1688-4	4.3/10 Plug, Male Pin	Plug to Jack	7/16 Jack, Female Socket	50 Ohms	-40 °C	155 °C	Silver	Between Series	4.3/10, 7/16 DIN	Free Hanging (In-Line)	6000 MHz	White Bronze	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Straight	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.3/10 Plug, Male Pin To 7/16 Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
