51-451.036F

Active

EAO

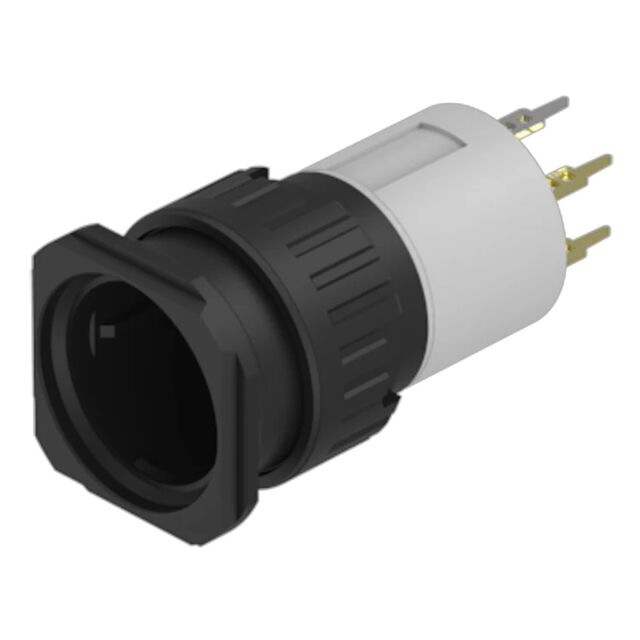

SWITCH ACTUATORS ILLUMINATED PUSHBUTTON FLUSH MOUNTING NEUTRAL MOM LL 2NO UT GOLD

Search across all available documentation for this part.

Active

EAO

SWITCH ACTUATORS ILLUMINATED PUSHBUTTON FLUSH MOUNTING NEUTRAL MOM LL 2NO UT GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	51-451.036F	51 Series

Accessory Type	-	Cover
Actuator Marking	No Marking	No Marking
Actuator Type	Square, Button (Not Included)	Square, Button (Not Included), Flat Key
Angle of Throw	-	42 - 90 °
Circuit	DPST-NO	DPST-NO, DPST-NO/NC, 4PST-2NO/2NC
Contact Timing	-	Not Specified
Current Rating (Amps)	100 mA	5 - 100 mA
Depth Behind Flange	-	34 - 36 mm
Features	-	IP65
Illumination	-	Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Key Removable Positions	-	1 only
Key Removable Positions	-	2
Mechanical Life	5000000 Cycles	2000000 - 5000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front, Snap Fit
Number of Positions	-	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions	-	16 mm
Panel Cutout Dimensions [x]	21.2 mm	21.2 mm
Panel Cutout Dimensions [y]	21.2 mm	21.2 mm
Shape	-	Square
Size	-	15.3 mm
Size	-	15.3 mm
Switch Function	Off-Mom	Off-Mom, On-Mom, On-Off, Off-On
Switch Type	-	Pushbutton
Termination Style	PC Pin, Solder Lug	PC Pin, Solder Lug, Quick Connect, Solder
Termination Style	-	0.11 in
Termination Style	-	2.8 mm
Type	Standard	Standard
Voltage Rating - AC	42 V	42 - 250 V
Voltage Rating - DC	42 V	42 V

Rotary Switches Rotary Switch, Standard, 1/8" shaft, 22.5°, 1 deck, 2 pole/deck, 5 positions/pole, non-shorting

Part	Actuator Type	Type	Ingress Protection	Voltage Rating - AC	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Actuator Marking	Mechanical Life	Switch Function	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Key Removable Positions	Angle of Throw	Number of Positions	Depth Behind Flange	Panel Cutout Dimensions [diameter]	Contact Timing	Features	Termination Style	Termination Style	Key Removable Positions	Accessory Type	Shape	Illumination	Switch Type	Size [x]	Size [y]
EAO 51-451.036F	Square, Button (Not Included)	Standard	IP65 - Dust Tight, Water Resistant	42 V	42 V	21.2 mm	21.2 mm	PC Pin, Solder Lug	No Marking	5000000 Cycles	Off-Mom	Panel Mount, Front	100 mA	55 °C	-25 °C	DPST-NO
EAO 51-457.036D	Flat Key			42 V	42 V			PC Pin, Solder Lug			Off-Mom, On-Mom		100 mA	55 °C	-25 °C	DPST-NO	1 only	42 °	2	35.5 mm	16 mm	Not Specified	IP65
EAO 51-151.022F	Square, Button (Not Included)	Standard	IP65 - Dust Tight, Water Resistant	250 V		21.2 mm	21.2 mm	Quick Connect, Solder	No Marking	2000000 Cycles	Off-Mom, On-Mom	Panel Mount, Front	5 A	55 °C	-25 °C	DPST-NO/NC								0.11 in	2.8 mm
EAO 51-336.025D	Flat Key			250 V				Solder Lug			Off-On, On-Off		5 A	55 °C	-25 °C	4PST-2NO/2NC		90 °	2	34 mm	16 mm	Not Specified	IP65			2
EAO 51-141.022D	Flat Key			250 V				Quick Connect, Solder			Off-Mom, On-Mom		5 A	55 °C	-25 °C	DPST-NO/NC	1 only	42 °	2	36 mm	16 mm	Not Specified	IP65	0.11 in	2.8 mm
EAO 51-925																											Cover
EAO 51-951.3												Snap Fit																Square	Illuminated	Pushbutton	15.3 mm	15.3 mm
