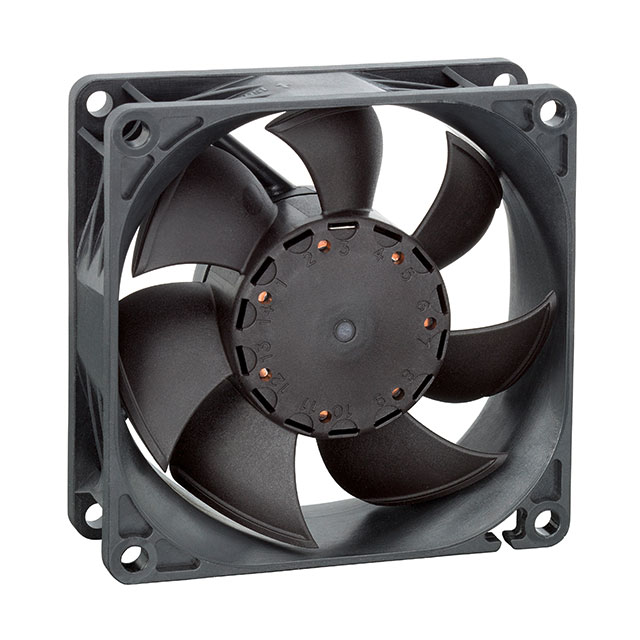

Specification	8452/2H4P

Air Flow	68.8 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control, Speed Sensor (Tach)
Lifetime	60000 Hrs
Material - Blade	Nylon, Polyamide, PA, Fiberglass Reinforced
Material - Frame	Fiberglass Reinforced, Polybutylene Terephthalate (PBT)
Noise	50 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	6.8 W
RPM	6200 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	15 V
Voltage Range (Min)	8 V
Weight	0.231 lb
Width	1 in

8452 Series

Part	Weight	Noise	RPM	Fan Type	Bearing Type	Width	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Features	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Operating Temperature (Min)	Operating Temperature (Max)	Air Flow	Power (Watts)	Voltage Range (Min)	Voltage Range (Max)	Lifetime	Material - Blade	Material - Frame
ebm-papst Inc. 8452/2H4P	0.231 lb	50 dB	6200 RPM	Tubeaxial	Ball	1 in	80 mm	Square	80 mm	PWM Control Speed Sensor (Tach)	4 leads	Wire Leads	4 Wire Leads	12 VAC	-4 °F	158 °F	68.8 CFM	6.8 W	8 V	15 V	60000 Hrs	Fiberglass Reinforced Nylon PA Polyamide	Fiberglass Reinforced Polybutylene Terephthalate (PBT)
