CA4B4,GY

Active

Serpac

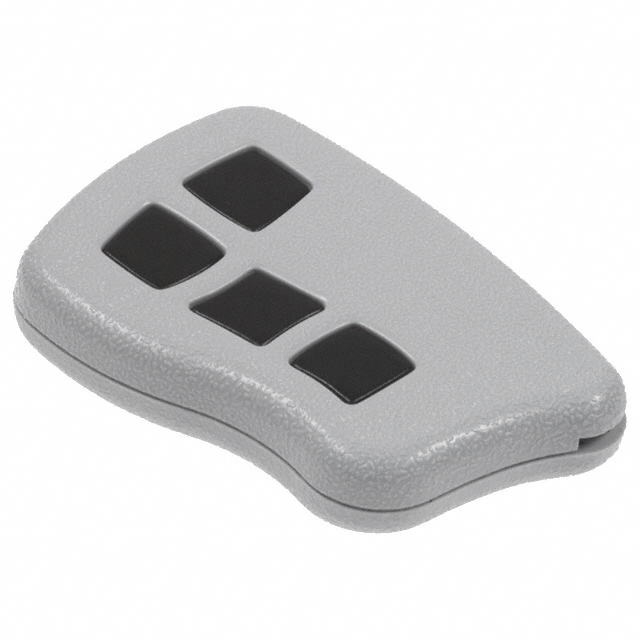

KEY FOB ABS GRAY 2.53"L X 1.73"W

Search across all available documentation for this part.

Active

Serpac

KEY FOB ABS GRAY 2.53"L X 1.73"W

Technical Specifications

Parameters and characteristics for this part

Specification	CA4B4,GY

Area (L x W)	4.38 in²
Area (L x W)	28.3 cm²
Color	Gray
Container Type	Key FOB
Design	Split Sides, Hand Held
Features	Buttons - 4
Height [z]	16.51 mm
Height [z]	0.65 "
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP67
Size / Dimension [x]	64.26 mm
Size / Dimension [x]	2.53 in
Size / Dimension [y]	1.73 "
Size / Dimension [y]	43.94 mm
Weight	0.018 lb
Weight	8.16 g

Part	Height [z]	Height [z]	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color	Material Flammability Rating	Ratings	Features	Design	Weight	Weight	Area (L x W)	Area (L x W)	Material
Serpac CA4B4,AL	16.51 mm	0.65 "	Key FOB	1.73 "	64.26 mm	43.94 mm	2.53 in	Almond	UL94 HB	IP67	Buttons - 4	Hand Held Split Sides	0.018 lb	8.16 g	4.38 in²	28.3 cm²	Plastic ABS
Serpac CA4B4,BK	16.51 mm	0.65 "	Key FOB	1.73 "	64.26 mm	43.94 mm	2.53 in	Black	UL94 HB	IP67	Buttons - 4	Hand Held Split Sides	0.018 lb	8.16 g	4.38 in²	28.3 cm²	Plastic ABS
Serpac CA4B4,GY	16.51 mm	0.65 "	Key FOB	1.73 "	64.26 mm	43.94 mm	2.53 in	Gray	UL94 HB	IP67	Buttons - 4	Hand Held Split Sides	0.018 lb	8.16 g	4.38 in²	28.3 cm²	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.09

General part information

Key FOB Plastic, ABS Gray Hand Held, Split Sides 2.530" L x 1.730" W (64.26mm x 43.94mm) X 0.650" (16.51mm)

Technical documentation and resources
