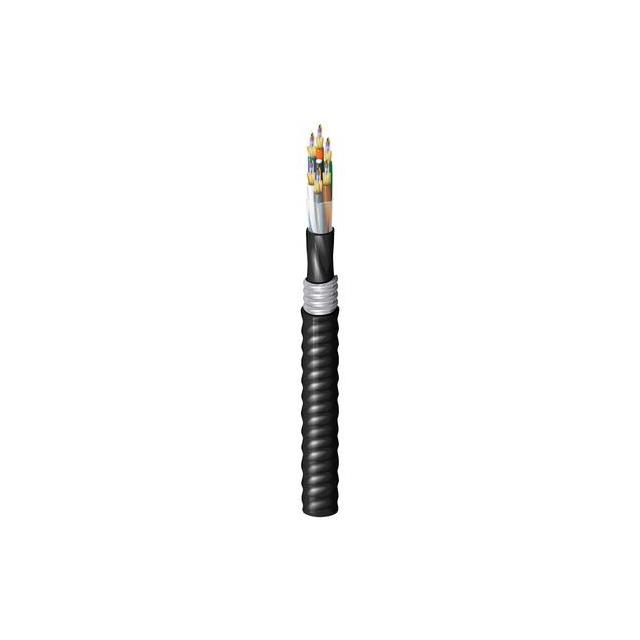

FD2D096AK

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FD2D096AK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	Armored
Features	96 Fibers
Jacket (Insulation) Diameter [diameter]	22.86 mm
Jacket (Insulation) Diameter [diameter]	0.9 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Multimode

Part	Ratings	Core Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Style	Features	Features	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Type	Cladding Diameter [diameter]	Jacket Color	Tensile Strength
Belden Inc. FD2D096AK	OFCP	50 µm	-40 °C	70 °C	Multiple Fibers	Armored	96 Fibers	Poly-Vinyl Chloride (PVC)	22.86 mm	0.9 "	Multimode	125 µm	Black	81.6 kg
Belden Inc. FD2D096LKO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fiber Optic Cable Black Multimode 125µm
