Q-2103C000R108i

Active

Amphenol Custom Cable

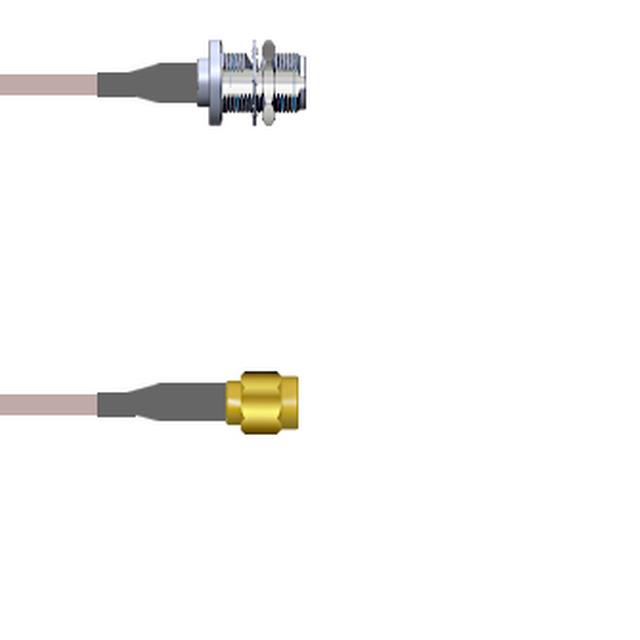

COAX CBL SMA TO N-TYPE 9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2103C000R108i

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Part	1st Connector Mounting Type	1st Contact Gender	Features	2nd Connector Mounting Type	Length	Length	Length	Style	2nd Connector Mounting Feature	Overall Impedance	2nd Connector	Color	Cable Type	1st Connector	2nd Contact Gender	Frequency - Max [Max]
Amphenol Custom Cable Q-2103C000R108i	Free Hanging (In-Line)	Male	Shielded	Panel Mount	2.7 m	9 ft	108 in	SMA to N-Type	Bulkhead - Front Side Nut	50 Ohms	N-Type Jack	Copper	RG-316 DB	SMA Plug	Female	11 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type RG-316 DB 108.0" (2.7m) 9.0'
