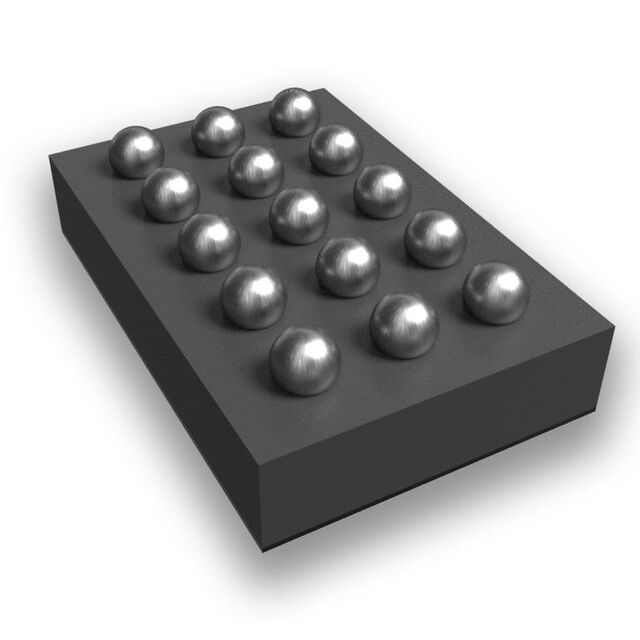

KTD2151EUO-TR
ActiveKinetic Technologies
IC REG BST PROG 80MA DL 15WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KTD2151EUO-TR
ActiveKinetic Technologies
IC REG BST PROG 80MA DL 15WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KTD2151EUO-TR |
|---|---|
| Current - Output | 80 mA |
| Frequency - Switching | 1.8 MHz, 900 kHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Programmable |
| Package / Case | 15-WFBGA, WLCSP |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output (Max) [Max] | 6.3 V |
| Voltage - Output (Min/Fixed) | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.69 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.73 | |||
| 25 | $ 0.69 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 3000 | $ 0.32 | ||
| 6000 | $ 0.30 | |||
| 15000 | $ 0.29 | |||
| 30000 | $ 0.28 | |||
Description
General part information
KTD2151 Series
Boost Switching Regulator IC Positive Programmable ±4V 2 Output 80mA 15-WFBGA, WLCSP
