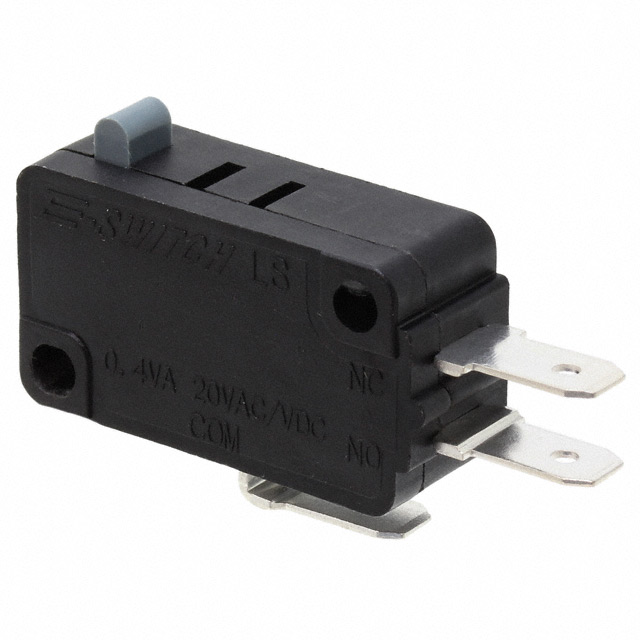

Specification	LS085R100F160C1A

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating	0.4 VA
Electrical Life (Cycles)	50000
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	160 gf
Operating Position (Length)	0.579 in
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pretravel (Length)	0.08 in
Quick Connect Size (0.187")	0.187 in
Release Force	40 gf
Switch Function	On-Mom
Termination Style	Quick Connect
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

LS085R Series

Part	Mechanical Life (Cycles)	Operating Position (Length)	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Actuator Type	Pretravel (Length)	Mounting Type	Electrical Life (Cycles)	Quick Connect Size (0.187")	Termination Style	Release Force	Operating Force
E-Switch LS085R104F050C1A	1000000 Cycles	0.748 in	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Simulated Roller	0.205 in	Chassis Mount	50000	0.187 in	Quick Connect	20 gf	50 gf
E-Switch LS085R105F160V1A	1000000 Cycles	0.815 in	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Roller	0.106 in	Right Angle Through Hole	50000		PC Pin	40 gf	160 gf
E-Switch LS085R104F050V2B	1000000 Cycles	0.748 in	SPST-NC	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Simulated Roller	0.205 in	Right Angle Through Hole	50000		PC Pin	20 gf	50 gf
E-Switch LS085R105F250C1C	1000000 Cycles	0.815 in	SPST-NO	85 °C	-25 °C	0.4 VA	20 V	Off-Mom	20 V	Lever Roller	0.106 in	Chassis Mount	50000	0.187 in	Quick Connect	50 gf	0.25 kgf
E-Switch LS085R101F160V1A	1000000 Cycles	0.602 in	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Straight	0.08 in	Right Angle Through Hole	50000		PC Pin	40 gf	160 gf
E-Switch LS085R104F085C1A	1000000 Cycles	0.748 in	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Simulated Roller	0.205 in	Chassis Mount	50000	0.187 in	Quick Connect	30 gf	85 gf
E-Switch LS085R105F100S1A	1000000 Cycles	0.815 in	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Roller	0.106 in	Chassis Mount	50000		Solder Lug	30 gf	0.1 kgf
E-Switch LS085R100F250C1C	1000000 Cycles	0.579 in	SPST-NO	85 °C	-25 °C	0.4 VA	20 V	Off-Mom	20 V	Round (Pin Plunger)	0.08 in	Chassis Mount	50000	0.187 in	Quick Connect	50 gf	0.25 kgf
E-Switch LS085R102F120C1C	1000000 Cycles	0.61 in	SPST-NO	85 °C	-25 °C	0.4 VA	20 V	Off-Mom	20 V	Lever Straight	0.161 in	Chassis Mount	50000	0.187 in	Quick Connect	40 gf	120 gf
E-Switch LS085R102F075C1A	1000000 Cycles	0.61 in	SPDT	85 °C	-25 °C	0.4 VA	20 V	On-Mom	20 V	Lever Straight	0.161 in	Chassis Mount	50000	0.187 in	Quick Connect	25 gf	75 gf
