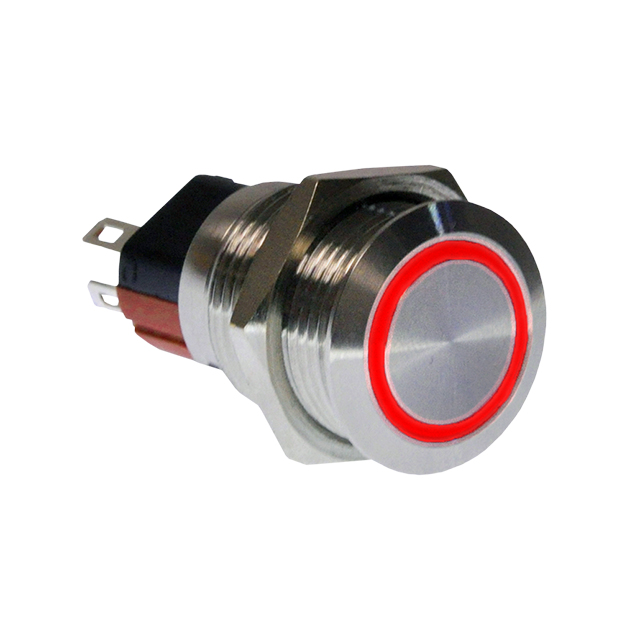

PVA3H230SS311

E-Switch

SWITCH PB SPST 2A 36V

Deep-Dive with AI

Search across all available documentation for this part.

PVA3H230SS311

E-Switch

SWITCH PB SPST 2A 36V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PVA3H230SS311

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Features	Stainless Steel
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	36 VDC

PVA3 Series

Part	Actuator Marking	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Termination Style	Type	Color - Actuator/Cap	Circuit	Ingress Protection	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Illumination Type, Color	Actuator Type	Illumination Voltage (Nominal)	Switch Function	Electrical Life	Termination Style	Termination Style
E-Switch PVA3H2B0SS334	No Marking	36 VDC	16 mm	2 A	Solder Lug	Anti-Vandal Illuminated	Silver	SPDT	IP65 - Dust Tight Water Resistant	Panel Mount Front	Stainless Steel	55 °C	-25 °C	500000 Cycles	Green LED	Button Round	12 VDC	On-Mom
E-Switch PVA3H2B0SS3R1	No Marking	36 VDC	16 mm	2 A	Solder Lug	Anti-Vandal Illuminated	Silver	SPDT	IP65 - Dust Tight Water Resistant	Panel Mount Front	Stainless Steel	55 °C	-25 °C	500000 Cycles	Blue Green LED Red	Button Round	1.8 VDC 2.8 VDC	On-Mom	50000 Cycles
E-Switch PVA3F230SS3R1	No Marking	36 VDC	16 mm	2 A	Solder Lug	Anti-Vandal Illuminated	Silver	SPDT	IP65 - Dust Tight Water Resistant	Panel Mount Front	Stainless Steel	55 °C	-25 °C	500000 Cycles	Blue Green LED Red	Button Flush Round	1.8 VDC 2.8 VDC	On-On	50000 Cycles
E-Switch PVA3F23011321		36 VDC	16 mm	2 A	Quick Connect Solder	Anti-Vandal Illuminated	Black	SPDT	IP65 - Dust Tight Water Resistant	Panel Mount Front		55 °C	-20 C	500000 Cycles	LED Orange	Button Flush Round	1.8 VDC	On-On	50000 Cycles	0.11 in	2.8 mm
E-Switch PVA3H230SS311	No Marking	36 VDC	16 mm	2 A	Solder Lug	Anti-Vandal Illuminated	Silver	SPDT	IP65 - Dust Tight Water Resistant	Panel Mount Front	Stainless Steel	55 °C	-25 °C	500000 Cycles	LED Red	Button Round	1.8 VDC	On-On	50000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.23
		10	$ 16.59
		40	$ 15.17
		80	$ 14.51
		120	$ 14.14
		280	$ 13.38
		520	$ 12.86

Description

General part information

PVA3 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
