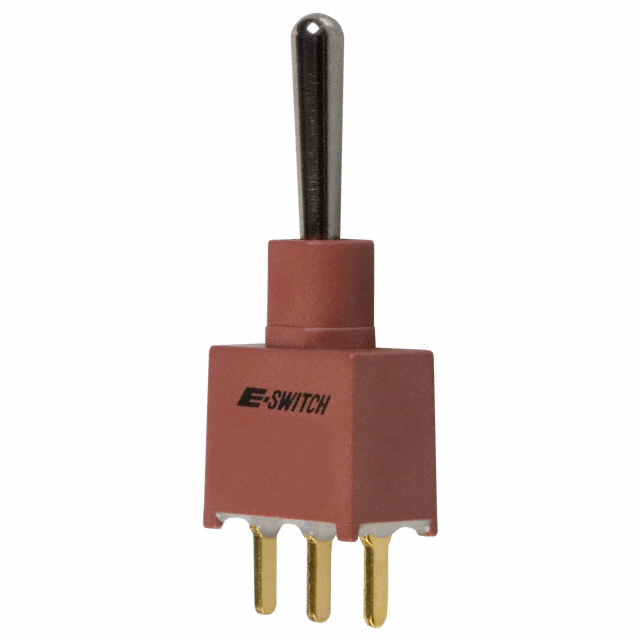

100AWSP3T1B4M2RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

100AWSP3T1B4M2RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.35
		10	$ 3.88
		25	$ 3.68
		50	$ 3.55
		108	$ 3.36
		324	$ 3.22
		540	$ 2.95
		1080	$ 2.82

Description

General part information

100AWSP3 Series

Toggle Switch SPDT Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100AWSP3T1B4M2RE	100AWSP3 Series

Actuator Length [x]	0.5 in	0.5 - 7.62 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded, 1/4-40
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 - 5 A
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole	Through Hole, Vertical, Right Angle, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 in
Switch Function	On-Off-On	On-Off-On
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

100AWSP3 Series

SWITCH TOGGLE SPDT 5A 120V

Part	Actuator Material	Electrical Life	Mounting Type	Bushing Thread	Features	Switch Function	Voltage Rating - AC	Ingress Protection	Circuit	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Actuator Length [x]	Illumination	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]
E-Switch 100AWSP3T2B4M2QE	Brass, Chrome Plated	30000 Cycles	Through Hole	Unthreaded	Epoxy Sealed Terminals	On-Off-On	120 V	IP67 - Dust Tight, Waterproof	SPDT	PC Pin	-30 ░C	85 °C	28 V	7.62 mm	Non-Illuminated	Standard Round	5 A
E-Switch 100AWSP3T2B1M2RE	Brass, Chrome Plated	30000 Cycles		1/4-40	Epoxy Sealed Terminals	On-Off-On	20 V	IP67 - Dust Tight, Waterproof	SPDT	PC Pin	-30 ░C	85 °C	20 V	5.08 mm	Non-Illuminated	Standard Round	0.4 VA	0.25 in
E-Switch 100AWSP3T1B4M2QE	Brass, Chrome Plated	30000 Cycles	Through Hole	Unthreaded	Epoxy Sealed Terminals	On-Off-On	120 V	IP67 - Dust Tight, Waterproof	SPDT	PC Pin	-30 ░C	85 °C	28 V	0.5 in	Non-Illuminated	Standard Round	5 A
E-Switch 100AWSP3T1B4M2RE	Brass, Chrome Plated	30000 Cycles	Through Hole	Unthreaded	Epoxy Sealed Terminals	On-Off-On	20 V	IP67 - Dust Tight, Waterproof	SPDT	PC Pin	-30 ░C	85 °C	20 V	0.5 in	Non-Illuminated	Standard Round	0.4 VA
E-Switch 100AWSP3T2B4M7RE	Brass, Chrome Plated	30000 Cycles	Right Angle, Through Hole, Vertical	Unthreaded	Epoxy Sealed Terminals	On-Off-On	20 V	IP67 - Dust Tight, Waterproof	SPDT	PC Pin	-30 ░C	85 °C	20 V	7.62 mm	Non-Illuminated	Standard Round	0.4 VA
E-Switch 100AWSP3T1B4M1QE	Brass, Chrome Plated	30000 Cycles		Unthreaded	Epoxy Sealed Terminals	On-Off-On	120 V	IP67 - Dust Tight, Waterproof	SPDT	Solder Lug	-30 ░C	85 °C	28 V	0.5 in	Non-Illuminated	Standard Round	5 A
E-Switch 100AWSP3T2B4M6QE	Brass, Chrome Plated	30000 Cycles	Through Hole, Right Angle	Unthreaded	Epoxy Sealed Terminals	On-Off-On	120 V	IP67 - Dust Tight, Waterproof	SPDT	PC Pin	-30 ░C	85 °C	28 V	7.62 mm	Non-Illuminated	Standard Round	5 A
E-Switch 100AWSP3T1B4M6QE	Brass, Chrome Plated	30000 Cycles	Through Hole, Right Angle	Unthreaded	Epoxy Sealed Terminals	On-Off-On	120 V	IP67 - Dust Tight, Waterproof	SPDT	PC Pin	-30 ░C	85 °C	28 V	0.5 in	Non-Illuminated	Standard Round	5 A
