PT00SE14-5S-SR
ActiveAmphenol Industrial Operations

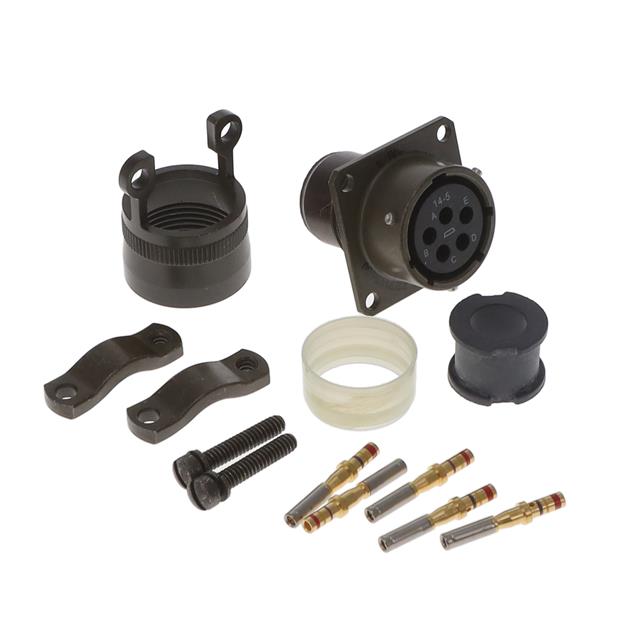

PTSE 5C 5#16 SKT RECP
Deep-Dive with AI
Search across all available documentation for this part.
PT00SE14-5S-SR
ActiveAmphenol Industrial Operations
PTSE 5C 5#16 SKT RECP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT00SE14-5S-SR | PT00SE Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 8 Coax |
| Contact Size | - | 12 |
| Contact Size | - | 12 - 20 |
| Contact Type | - | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell, Strain Relief, Cable Clamp | Backshell, Strain Relief, Cable Clamp |
| Housing Color | - | Olive Drab |
| Ingress Protection | Environment Sealed | Environment Sealed, Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Note | - | Contacts Not Included |
| Number of Positions | - | 7 - 26 |
| Number of Positions | - | 14 |
| Number of Positions | - | 9 |
| Number of Positions | - | 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 14-5 | 22-7, 14-12, 14-5 |
| Shell Size - Insert | - | 18 - 76 |
| Shell Size - Insert | - | 14 - 16 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Type | - | For Male Pins, For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 73.74 | |
| Bulk | 1 | $ 60.51 | ||
| 10 | $ 52.44 | |||
| 25 | $ 46.27 | |||
| 50 | $ 41.40 | |||
| 100 | $ 36.30 | |||
PT00SE Series
CONN RCPT FMALE 7POS GOLD CRIMP
| Part | Color | Shielding | Insert Material | Shell Finish | Contact Material | Connector Type | Mounting Feature | Primary Material | Fastening Type | Orientation | Backshell Material, Plating | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Qualification | Number of Positions | Ingress Protection | Termination | Features | Contact Finish - Mating | Shell Material | Type | Contact Shape | Contact Size | Note | Housing Color | Contact Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Contact Size [custom] | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT00SE-22-7S(SR) | Olive Drab | Unshielded | Neoprene | Olive Drab Chromate over Cadmium | Copper Alloy | Receptacle, Female Sockets | Flange | Metal | Bayonet Lock | N | Aluminum, Olive Drab Cadmium | 22-7 | -55 °C | 125 °C | Aerospace, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | 7 | Environment Sealed | Crimp | Backshell, Cable Clamp, Strain Relief | Gold | Aluminum | |||||||||||||
Amphenol Industrial Operations PT00SE-22-7PLC | Unshielded | Neoprene | Chromate over Cadmium | Receptacle Housing | Flange | Bayonet Lock | N | 22-7 | -55 °C | 125 °C | MIL-DTL-26482 Series I | 7 | Environment Resistant | Backshell | Aluminum | For Male Pins | Circular | 8 Coax | Contacts Not Included | Olive Drab | Crimp | ||||||||||||||
Amphenol Industrial Operations PT00SE16-76P-LC | Unshielded | Neoprene | Chromate over Cadmium | Receptacle Housing | Flange | Bayonet Lock | N | -55 °C | 125 °C | MIL-DTL-26482 Series I | Environment Resistant | Backshell | Aluminum | For Male Pins | Circular | Contacts Not Included | Olive Drab | Crimp | 14 | 9 | 5 | 76 | 16 | 12 | 12, 20 | ||||||||||
Amphenol Industrial Operations PT00SE14-12S-SR | Olive Drab | Unshielded | Neoprene | Olive Drab Chromate over Cadmium | Copper Alloy | Receptacle, Female Sockets | Flange | Metal | Bayonet Lock | N | Aluminum, Olive Drab Cadmium | 14-12 | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | MIL-DTL-26482 Series I | 12 | Environment Sealed | Crimp | Backshell, Cable Clamp, Strain Relief | Gold | Aluminum | |||||||||||||
Amphenol Industrial Operations PT00SE14-5S-SR | Olive Drab | Unshielded | Neoprene | Olive Drab Chromate over Cadmium | Copper Alloy | Receptacle, Female Sockets | Flange | Metal | Bayonet Lock | N | Aluminum, Olive Drab Cadmium | 14-5 | -55 °C | 125 °C | Aerospace, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Environment Sealed | Crimp | Backshell, Cable Clamp, Strain Relief | Gold | Aluminum | ||||||||||||||
Amphenol Industrial Operations PT00SE16-26S-LC | Unshielded | Neoprene | Chromate over Cadmium | Receptacle Housing | Flange | Bayonet Lock | N | -55 °C | 125 °C | MIL-DTL-26482 Series I | 26 | Environment Resistant | Backshell | Aluminum | For Female Sockets | Circular | Contacts Not Included | Olive Drab | Crimp | 26 | 16 | 20 | |||||||||||||
Amphenol Industrial Operations PT00SE-14-18S(SR)LC | Unshielded | Neoprene | Chromate over Cadmium | Receptacle Housing | Flange | Bayonet Lock | N | -55 °C | 125 °C | MIL-DTL-26482 Series I | 18 | Environment Resistant | Cable Clamp | Aluminum | For Female Sockets | Circular | Contacts Not Included | Olive Drab | Crimp | 18 | 14 | 20 |
Description
General part information
PT00SE Series
5 Position Circular Connector Receptacle, Female Sockets Crimp
Documents
Technical documentation and resources
