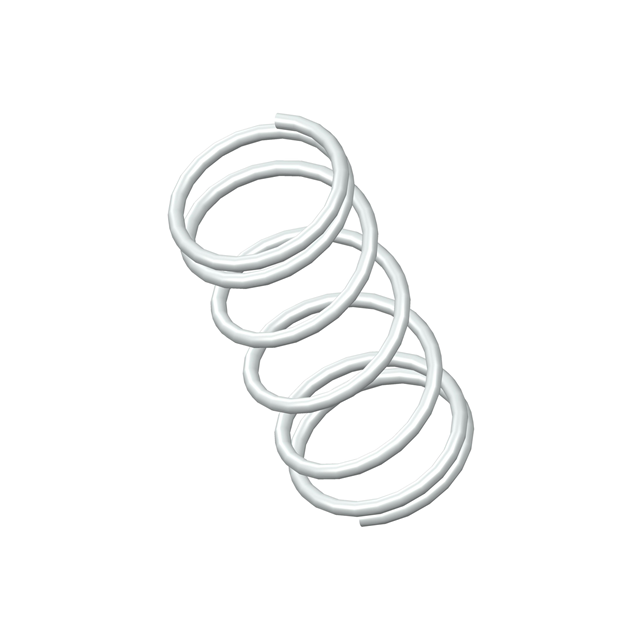

A13-70CS

Active

Century Spring Corp

COMP O= .875,L= 1.97,W= .072

Search across all available documentation for this part.

Active

Century Spring Corp

COMP O= .875,L= 1.97,W= .072

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A13-70CS	A13 Series

Diameter - Inside [diameter]	0.731 "	0.164 - 0.731 "
Diameter - Inside [diameter]	18.57 mm	4.17 - 18.57 mm
Diameter - Outside	-	0.25 in
Diameter - Outside [diameter]	0.875 in	0.875 in
Diameter - Outside [diameter]	22.23 mm	6.35 - 22.23 mm
End Style	Closed	Closed, Ground
Finish	None	None
Free Length	-	0.63 in
Free Length	-	16 mm
Free Length [x]	50.04 mm	50.04 mm
Free Length [x]	1.97 "	1.97 "
Material	Stainless Steel	Stainless Steel, Spring Steel
Rate	15 lbs/in	15 - 81 lbs/in
Wire Diameter	-	1.09 mm
Wire Diameter	-	0.043 "
Wire Diameter [diameter]	1.83 mm	1.83 mm
Wire Diameter [diameter]	0.072 in	0.072 in

COMP O= .875,L= 1.97,W= .072

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Free Length [x]	Free Length [x]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Wire Diameter [diameter]	Wire Diameter [diameter]	Material	Rate	End Style	Finish	Free Length	Free Length	Diameter - Outside [diameter]	Wire Diameter	Wire Diameter
Century Spring Corp A13-70CS	0.875 in	22.23 mm	50.04 mm	1.97 "	0.731 "	18.57 mm	1.83 mm	0.072 in	Stainless Steel	15 lbs/in	Closed	None
Century Spring Corp A13-9CS		6.35 mm			0.164 in	4.17 mm			Spring Steel	81 lbs/in	Closed, Ground	None	0.63 in	16 mm	0.25 in	1.09 mm	0.043 "
