09120042603

Active

HARTING

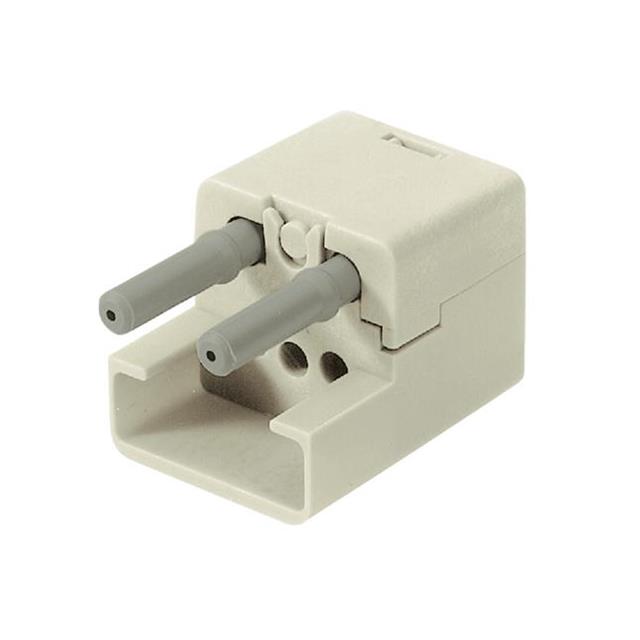

HAN BRID FIBER OPTIC, MALE CABLE SIDE INSERT, 2 X CRIMPLESS POF F.O. (M) + HAN D (M), WITH F.O CONTACTS

Search across all available documentation for this part.

Active

HARTING

HAN BRID FIBER OPTIC, MALE CABLE SIDE INSERT, 2 X CRIMPLESS POF F.O. (M) + HAN D (M), WITH F.O CONTACTS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert with Fiber Optic Contacts Gray 4+2 Fiber Position Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09120042603	09120042 Series

Color	Gray	Gray
Connector Type	Insert with Fiber Optic Contacts	Insert with Fiber Optic Contacts
Current Rating (Amps)	10 A	10 A
Gender	Male	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	4+2 Fiber	4+2 Fiber
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	3 A	3 A
Termination Style	Crimp	Crimp
Voltage Rating	50 V	50 V

HAN BRID FIBER OPTIC, MALE CABLE SIDE INSERT, 2 X CRIMPLESS POF F.O. (M) + HAN D (M), WITH F.O CONTACTS

Part	Voltage Rating	Size	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Number of Positions	Gender	Connector Type	Material Flammability Rating	Housing Material	Current Rating (Amps)
HARTING 09120042603	50 V	3 A	Gray	-40 °C	70 °C	Crimp	4+2 Fiber	Male	Insert with Fiber Optic Contacts	UL94 V-0	Polycarbonate (PC)	10 A
HARTING 09120042612								Male
HARTING 09120042601	50 V	3 A	Gray	-40 °C	70 °C	Crimp	4+2 Fiber	Male	Insert with Fiber Optic Contacts	UL94 V-0	Polycarbonate (PC)	10 A
HARTING 09120042611	50 V	3 A	Gray	-40 °C	70 °C	Crimp	4+2 Fiber	Male	Insert with Fiber Optic Contacts	UL94 V-0	Polycarbonate (PC)	10 A
HARTING 09120042606	50 V	3 A	Gray	-40 °C	70 °C	Crimp	4+2 Fiber	Male	Insert with Fiber Optic Contacts	UL94 V-0	Polycarbonate (PC)	10 A
HARTING 09120042713	50 V	3 A	Gray	-40 °C	70 °C	Crimp	4+2 Fiber	Female	Insert with Fiber Optic Contacts	UL94 V-0	Polycarbonate (PC)	10 A
HARTING 09120042711	50 V	3 A	Gray	-40 °C	70 °C	Crimp	4+2 Fiber	Female	Insert with Fiber Optic Contacts	UL94 V-0	Polycarbonate (PC)	10 A
HARTING 09120042716	50 V	3 A	Gray	-40 °C	70 °C	Crimp	4+2 Fiber	Female	Insert with Fiber Optic Contacts	UL94 V-0	Polycarbonate (PC)	10 A
HARTING 09120042701	50 V	3 A	Gray	-40 °C	70 °C	Crimp	4+2 Fiber	Female	Insert with Fiber Optic Contacts	UL94 V-0	Polycarbonate (PC)	10 A
