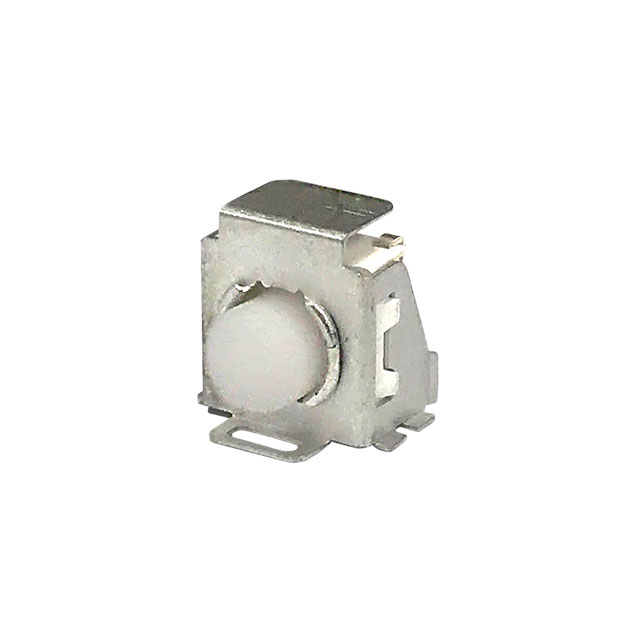

228EMSAAFR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	228EMSAAFR

Actuator Length, Right Angle [x]	6.55 mm
Actuator Orientation	Side Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Illuminated
Illumination Type, Color	Amber, LED
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount, Right Angle
Operating Force	200 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7.2 mm
Outline [y]	4.7 mm
Switch Function	Off-Mom
Switch Travel	0.7 mm
Termination Style	Gull Wing

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Contact Rating @ Voltage	Operating Force	Actuator Length, Right Angle [x]	Actuator Type	Switch Travel	Circuit	Illumination	Illumination Type, Color	Ingress Protection	Mechanical Life	Mounting Type	Outline [x]	Outline [y]	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function
CTS Electrocomponents 228EMSAAFR	Gull Wing	0.05 A, 12 VDC	200 gf	6.55 mm	Standard	0.7 mm	SPST-NO	Illuminated	Amber, LED	IP67 - Dust Tight, Waterproof	100000 Cycles	Surface Mount, Right Angle	7.2 mm	4.7 mm	Side Actuated	85 °C	-40 °C	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
