796406-1

Obsolete

TE Connectivity AMP Connectors

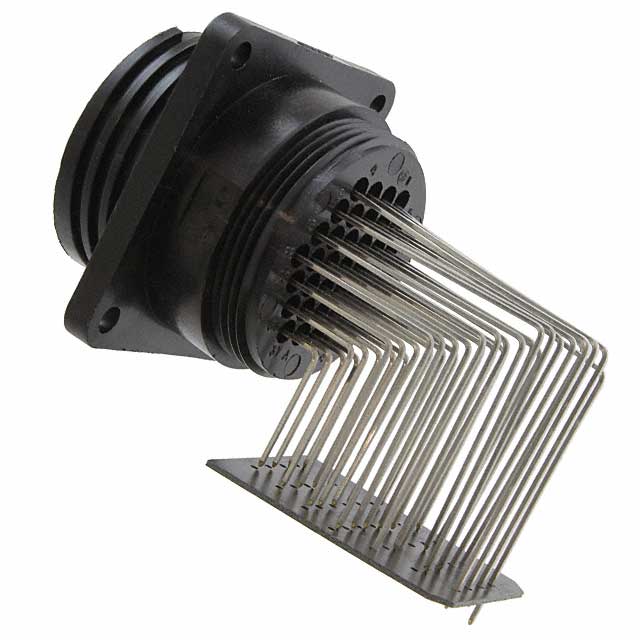

CONN RCPT MALE 37POS GOLD SOLDER

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN RCPT MALE 37POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	796406-1

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Brass
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert [Max]	37
Shell Size - Insert [Min]	23
Termination	Solder
Voltage Rating	250 VAC

CONN RCPT MALE 37POS GOLD SOLDER

Part	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Material Flammability Rating	Contact Material	Primary Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Connector Type	Termination	Mounting Feature
TE Connectivity AMP Connectors 796406-1	A	105 ░C	-55 °C	Gold	23	37	UL94 V-0	Brass	Plastic	250 VAC	30 Áin	0.76 Ám	37	Panel Mount, Right Angle, Through Hole	Male Pins, Receptacle	Solder	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

37 Position Circular Connector Receptacle, Male Pins Solder
