776276-2
ActiveTE Connectivity AMP Connectors

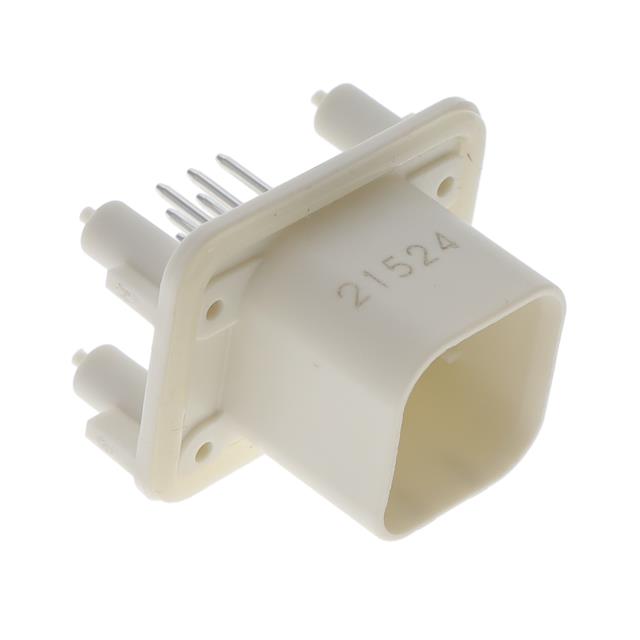

CONN HEADER VERT 8POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776276-2
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776276-2 | 776276 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Sealed, Mounting Flange | Sealed, Mounting Flange |
| Insulation Color | Natural | Black, Natural |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 8 | 8 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776276 Series
CONN HEADER VERT 8POS 4MM
| Part | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Mounting Type | Number of Rows | Insulation Material | Connector Type | Pitch - Mating | Pitch - Mating | Insulation Color | Shrouding | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Style | Current Rating (Amps) | Features | Contact Type | Termination | Number of Positions Loaded | Contact Shape | Applications | Fastening Type | Contact Material | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776276-1 | 0.157 in | 4 mm | 8 | Panel Mount, Through Hole | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Header | 0.157 " | 4 mm | Black | Shrouded - 4 Wall | 250 VAC | -40 °C | 105 ░C | Board to Cable/Wire | Varies by Wire Gauge | Mounting Flange, Sealed | Male Pin | Solder | All | Circular | Automotive, Industrial | Locking Ramp | Brass | |
TE Connectivity AMP Connectors 1-776276-1 | 0.157 in | 4 mm | 8 | Panel Mount, Through Hole | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Header | 0.157 " | 4 mm | Black | Shrouded - 4 Wall | 250 VAC | -40 °C | 125 °C | Board to Cable/Wire | Varies by Wire Gauge | Mounting Flange, Sealed | Male Pin | Solder | All | Circular | Automotive, Industrial | Locking Ramp | Brass | Gold-Palladium |
TE Connectivity AMP Connectors 776276-2 | 0.157 in | 4 mm | 8 | Panel Mount, Through Hole | 3 | Polybutylene Terephthalate (PBT), Glass Filled | Header | 0.157 " | 4 mm | Natural | Shrouded - 4 Wall | 250 VAC | -40 °C | 105 ░C | Board to Cable/Wire | Varies by Wire Gauge | Mounting Flange, Sealed | Male Pin | Solder | All | Circular | Automotive, Industrial | Locking Ramp | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.90 | |
| 36 | $ 8.40 | |||
| 108 | $ 7.67 | |||
| 468 | $ 7.63 | |||
| 972 | $ 7.17 | |||
Description
General part information
776276 Series
Connector Header Panel Mount, Through Hole 8 position 0.157" (4.00mm)
