776276-1

Active

TE Connectivity AMP Connectors

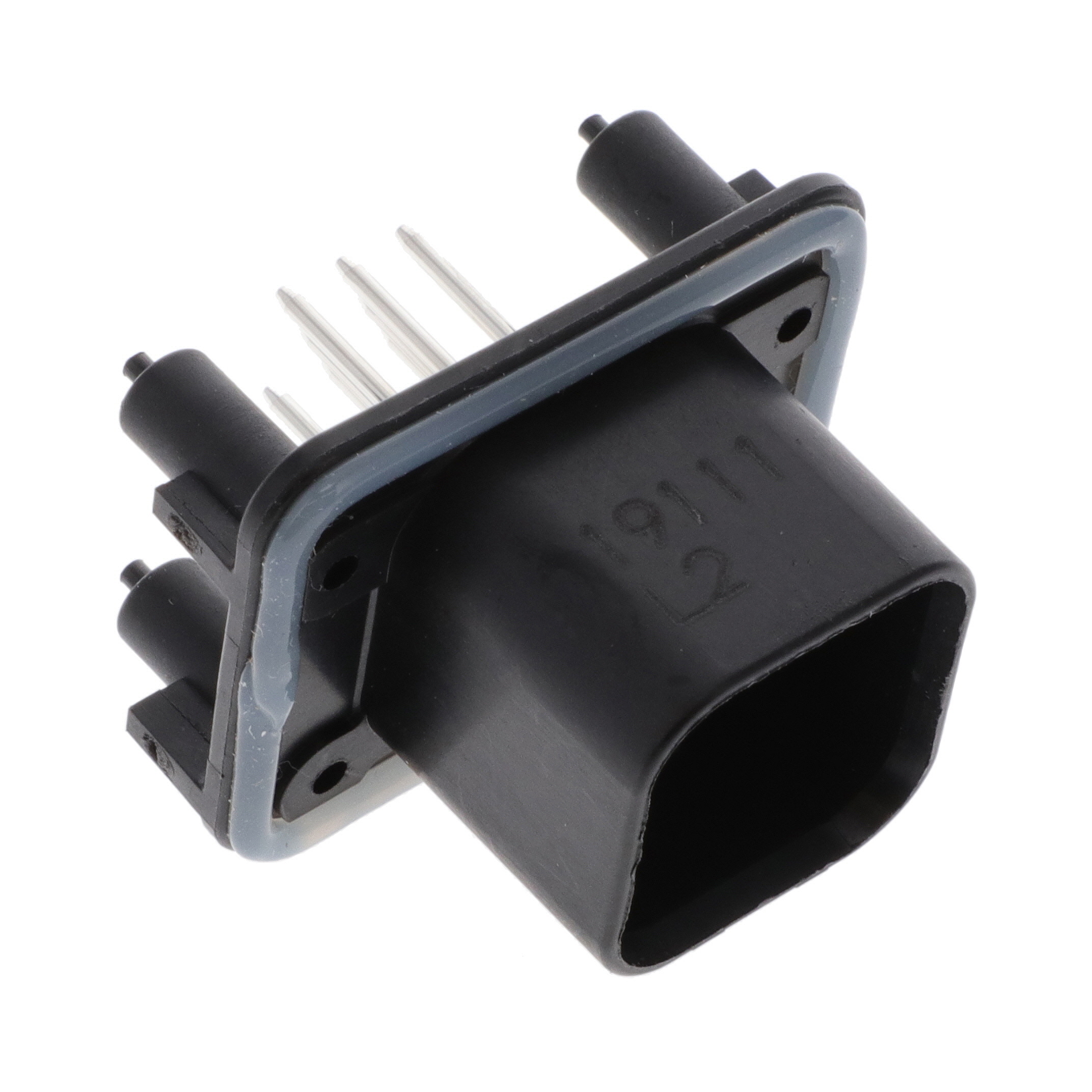

CONN HEADER VERT 8POS 4MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 4MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Panel Mount, Through Hole 8 position 0.157" (4.00mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	776276-1	776276 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealed, Mounting Flange	Sealed, Mounting Flange
Insulation Color	Black	Black, Natural
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	8	8
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

CONN HEADER VERT 8POS 4MM

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Mounting Type	Number of Rows	Insulation Material	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Shrouding	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Current Rating (Amps)	Features	Contact Type	Termination	Number of Positions Loaded	Contact Shape	Applications	Fastening Type	Contact Material	Contact Finish - Mating
TE Connectivity AMP Connectors 776276-1	0.157 in	4 mm	8	Panel Mount, Through Hole	3	Polybutylene Terephthalate (PBT), Glass Filled	Header	0.157 "	4 mm	Black	Shrouded - 4 Wall	250 VAC	-40 °C	105 ░C	Board to Cable/Wire	Varies by Wire Gauge	Mounting Flange, Sealed	Male Pin	Solder	All	Circular	Automotive, Industrial	Locking Ramp	Brass
TE Connectivity AMP Connectors 1-776276-1	0.157 in	4 mm	8	Panel Mount, Through Hole	3	Polybutylene Terephthalate (PBT), Glass Filled	Header	0.157 "	4 mm	Black	Shrouded - 4 Wall	250 VAC	-40 °C	125 °C	Board to Cable/Wire	Varies by Wire Gauge	Mounting Flange, Sealed	Male Pin	Solder	All	Circular	Automotive, Industrial	Locking Ramp	Brass	Gold-Palladium
TE Connectivity AMP Connectors 776276-2	0.157 in	4 mm	8	Panel Mount, Through Hole	3	Polybutylene Terephthalate (PBT), Glass Filled	Header	0.157 "	4 mm	Natural	Shrouded - 4 Wall	250 VAC	-40 °C	105 ░C	Board to Cable/Wire	Varies by Wire Gauge	Mounting Flange, Sealed	Male Pin	Solder	All	Circular	Automotive, Industrial	Locking Ramp	Brass
