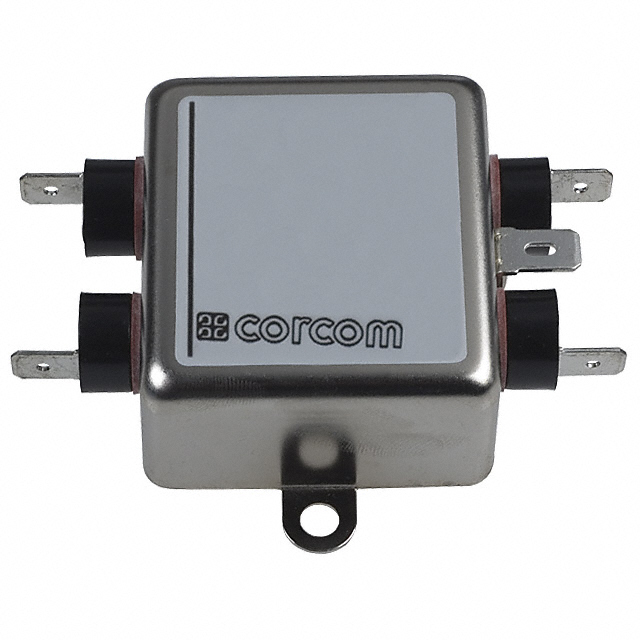

3VK1 - 2VK1,5VK1,10VK1

3VK1

Active
TE Connectivity Raychem Cable Protection

POWER LINE FILTER GENERAL PURPOSE RFI 50HZ/60HZ 3A 250VAC QUICK CONNECT FLANGE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCorcom EMI/RFI Filter Selector Chart1-1654250-1_CORCOM_EMI_RFI_QRG+3
3VK1 - 2VK1,5VK1,10VK1

3VK1

Active
TE Connectivity Raychem Cable Protection

POWER LINE FILTER GENERAL PURPOSE RFI 50HZ/60HZ 3A 250VAC QUICK CONNECT FLANGE MOUNT

Deep-Dive with AI

DocumentsCorcom EMI/RFI Filter Selector Chart1-1654250-1_CORCOM_EMI_RFI_QRG+3

Technical Specifications

Parameters and characteristics for this part

Specification3VK1
ApplicationsGeneral Purpose
Approval AgencyVDE, CSA, UR
ConfigurationSingle Stage
Current3 A
Filter TypeSingle Phase
Frequency - Operating [Max]60 Hz
Frequency - Operating [Min]50 Hz
Inductance1.76 mH
Mounting TypeChassis Mount
Operating Temperature [Max]40 °C
Operating Temperature [Min]-10 °C
Termination StyleQuick Connect
Voltage - Rated AC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 19.65
5$ 19.54
10$ 17.22
DigikeyBulk 1$ 18.39
12$ 17.82
36$ 17.24
60$ 16.67
108$ 14.94
252$ 14.37
504$ 14.22

Description

General part information

Corcom K Series

3 A Single Phase Filter, FASTON Input, .250" FASTON Output, 250 VAC, Corcom K, Single Phase Filters
