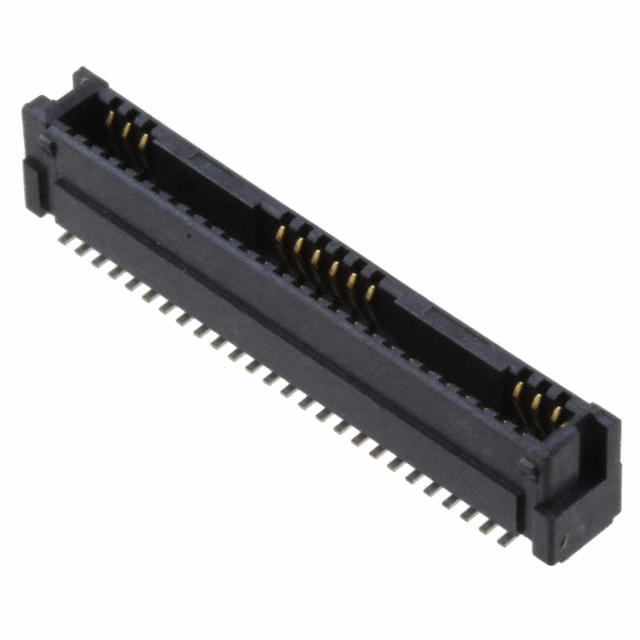

FK3S026WQ1R1000

Obsolete

JAE Electronics

CONN HEADER SMD 26POS 1MM

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN HEADER SMD 26POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	FK3S026WQ1R1000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Material	Copper Alloy
Contact Type	Outer Shroud Contact
Fastening Type	Friction Lock
Features	Board Guide
Insulation Color	Black
Insulation Height	5.95 mm
Insulation Height	0.234 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Type	Fastening Type	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Rows	Termination	Insulation Color	Number of Positions	Contact Finish - Mating	Style	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions Loaded	Mounting Type	Features	Contact Material	Shrouding
JAE Electronics FK3S026WQ1R1000	Outer Shroud Contact	Friction Lock	Header	0.039 in	1 mm	5.95 mm	0.234 in	2	Solder	Black	26	Gold	Board to Cable/Wire	UL94 V-0	12 µin	0.3 µm	Tin	All	Surface Mount	Board Guide	Copper Alloy	Shrouded - 4 Wall
