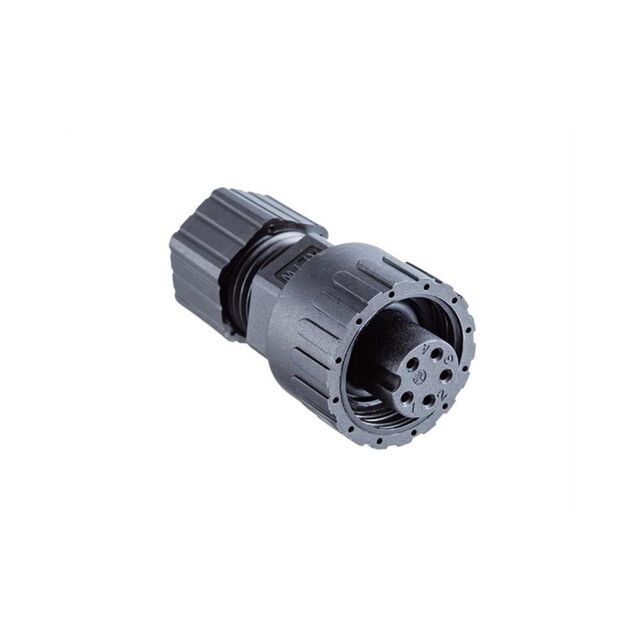

PWE-05BFFA-SL7001

Active

Amphenol LTW

POWER 8A

Search across all available documentation for this part.

Active

Amphenol LTW

POWER 8A

Technical Specifications

Parameters and characteristics for this part

Specification	PWE-05BFFA-SL7001

Cable Opening [Max] [custom]	10.8 mm
Cable Opening [Max] [custom]	0.425 in
Cable Opening [Min] [custom]	0.217 in
Cable Opening [Min] [custom]	5.5 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	8 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Voltage Rating	277 V

Part	Connector Type	Contact Material	Shielding	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Contact Finish - Mating	Shell Material	Orientation	Color	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Features	Current Rating (Amps)	Voltage Rating	Insert Material
Amphenol LTW PWE-05BFFA-SL7001	Female Sockets Plug	Copper Alloy	Unshielded	0.217 in	5.5 mm	10.8 mm	0.425 in	Gold	Glass Filled Nylon Polyamide (PA)	Keyed	Black	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	-40 °C	105 ░C	Plastic	Backshell Coupling Nut	8 A	277 V	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
