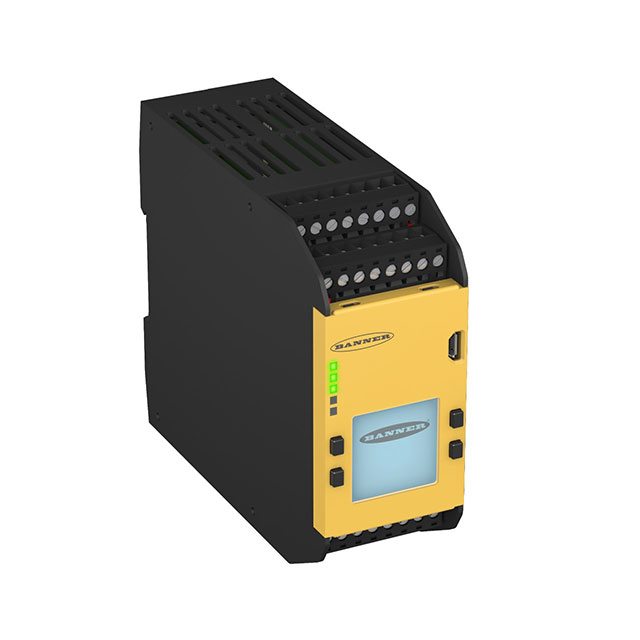

XS26-2D

Active

BANNER ENGINEERING

SAFETY CONTROLLER, LCD DISPLAY, 24 VDC, 0.12 A, SCREW, 26 INPUT, XS26 SERIES, DIN RAIL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXS,SC26-2 Quick Start Guide Drawing EN +1

XS26-2D

Active

BANNER ENGINEERING

SAFETY CONTROLLER, LCD DISPLAY, 24 VDC, 0.12 A, SCREW, 26 INPUT, XS26 SERIES, DIN RAIL

Deep-Dive with AI

DocumentsXS,SC26-2 Quick Start Guide Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XS26-2D	XS26 Series

Approval Agency	UL, CE, cULus	UL, CE, cULus
Contact Rating @ Voltage	24 VDC, 0.5 A	0.5 - 24 VDC
Controller Type	General Purpose	General Purpose
Features	Display	Display, Grounded Switching Output, Test Output
Ingress Protection	IP54, IP20	IP54, IP20
Mounting Type	DIN Rail	DIN Rail
Number of Inputs and Type	Digital	Digital
Number of Inputs and Type	26	26
Safety Category	Category 4, PLe, SIL3	Category 4, PLe, SIL3
Safety Outputs and Type	Solid State (2)	Solid State (2)
Termination Style	Screw Terminal	Screw Terminal
Voltage - Supply	24 VDC	24 VDC

XS26 Series

SAFETY CONTROLLER, LCD DISPLAY, 24 VDC, 0.12 A, SCREW, 26 INPUT, XS26 SERIES, DIN RAIL

Part	Controller Type	Contact Rating @ Voltage	Safety Category	Ingress Protection	Number of Inputs and Type	Number of Inputs and Type	Features	Approval Agency	Termination Style	Voltage - Supply	Safety Outputs and Type	Mounting Type
BANNER ENGINEERING XS26-2D	General Purpose	0.5 A, 24 VDC	Category 4, PLe, SIL3	IP20, IP54	Digital	26	Display	CE, cULus, UL	Screw Terminal	24 VDC	Solid State (2)	DIN Rail
BANNER ENGINEERING XS26-2DE	General Purpose	0.5 A, 24 VDC	Category 4, PLe, SIL3		Digital	26	Grounded Switching Output, Test Output	CE, cULus, UL	Screw Terminal	24 VDC	Solid State (2)	DIN Rail
BANNER ENGINEERING XS26-2	General Purpose	0.5 A, 24 VDC	Category 4, PLe, SIL3	IP20, IP54	Digital	26		CE, cULus, UL	Screw Terminal	24 VDC	Solid State (2)	DIN Rail
BANNER ENGINEERING XS26-2E	General Purpose	0.5 A, 24 VDC	Category 4, PLe, SIL3	IP20, IP54	Digital	26		CE, cULus, UL	Screw Terminal	24 VDC	Solid State (2)	DIN Rail

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1037.01
Newark	Each	1	$ 921.90

Description

General part information

XS26 Series

XS26-2D is a XS26 expandable base safety controller. Its innovative live display feature and diagnostics allow for active monitoring of I/O on a PC and assist in troubleshooting and commissioning.

Documents

Technical documentation and resources
