Specification	SLKC-S02EEFP-GCP-001

Color	Black
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection Description	Waterproof
Ingress Protection IP Rating	IPX8
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Positions	2
Orientation	G
Primary Material	Plastic
Shell Material	Thermoplastic
Shell Size - Insert	C-2
Shielding	Unshielded
Termination	Solder

SLKC Series

Part	Contact Material	Mounting Type	Shell Material	Fastening Type	Shielding	Number of Positions	Cable Opening (Max)	Cable Opening (Min)	Connector Type	Contact Finish - Mating	Color	Termination	Orientation	Shell Size - Insert	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Feature	Insert Material	Current Rating	Primary Material	Voltage Rating	Features

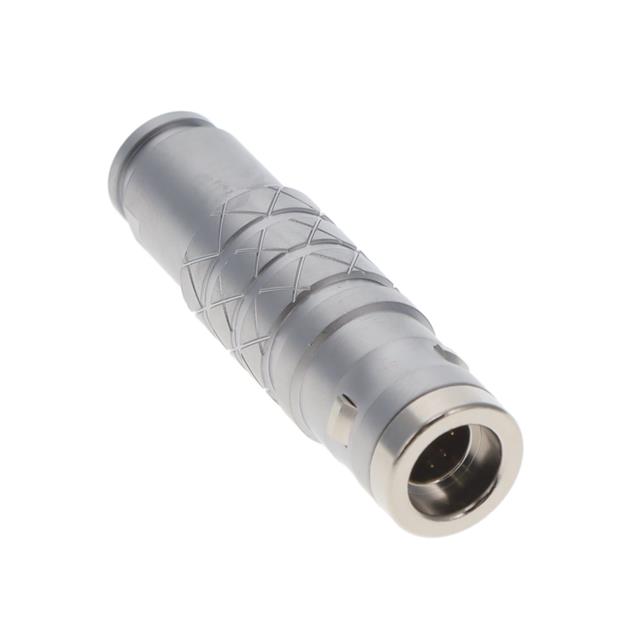

McGill Microwave Systems SLKC-A08FGMS-GCP-225	Copper Alloy	Free Hanging (In-Line)	Thermoplastic	Push-Pull	Unshielded	8	0.256 in	0.244 in	Male Pins Plug	Gold	Black	Solder	G	C-8	Waterproof	IPX8
McGill Microwave Systems SLKC-02EGFS-GCP-001	Copper Alloy	Panel Mount	Metal	Threaded	Unshielded	2			Female Sockets Receptacle	Gold	Silver	Solder Cup	Keyed		Dust Tight Waterproof	IP68	125 °C	-40 °C	Bulkhead Front Side Nut	Thermoplastic	12 A	Metal	400 V
McGill Microwave Systems SLKC-S02EEFP-GCP-001	Copper Alloy	Panel Mount Through Hole	Thermoplastic	Push-Pull	Unshielded	2			Male Pins Plug	Gold	Black	Solder	G	C-2	Waterproof	IPX8			Bulkhead Front Side Nut			Plastic
McGill Microwave Systems SLKC-02FGMS-GCP-225	Copper Alloy	Free Hanging (In-Line)	Metal	Push-Pull	Shielded	2			Male Pins Plug	Gold	Silver	Solder Cup	Keyed		Dust Tight Waterproof	IP68	125 °C	-40 °C			12 A	Metal	400 V	Backshell
