45-2828.1C90.001

Active

EAO

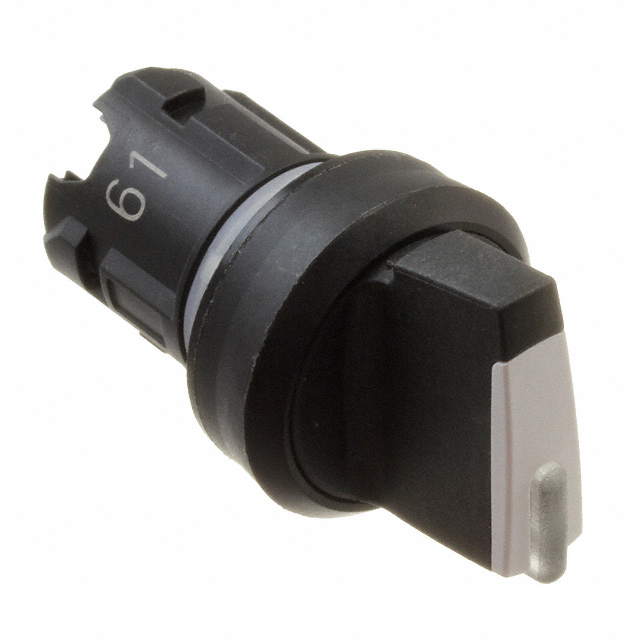

SWITCH ACTUATOR, EAO 45 SERIES SELECTOR SWITCHES, IP66, IP67, IP69K

Search across all available documentation for this part.

Active

EAO

SWITCH ACTUATOR, EAO 45 SERIES SELECTOR SWITCHES, IP66, IP67, IP69K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-2828.1C90.001	45-2828 Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Selector	Selector
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	22.3 mm	22.3 - 30.5 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Maintained	Maintained

SELECTOR SWITCH ACTUATOR 2 POSITIONS WHITE 0-MAIN 90? LONG LEVER FRONT/HOUSING METAL

Part	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions	Type	Illumination	Actuator Type	Requires
EAO 45-2828.2D90.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.4C90.001	45, EAO	30.5 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.2C20.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.1C60.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.1C50.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.3C90.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.2C30.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.1C90.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.4D20.001	45, EAO	30.5 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)
EAO 45-2828.1C20.001	45, EAO	22.3 mm	Maintained	Non-Illuminated	Selector	Contact Block(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Selector Non-Illuminated
