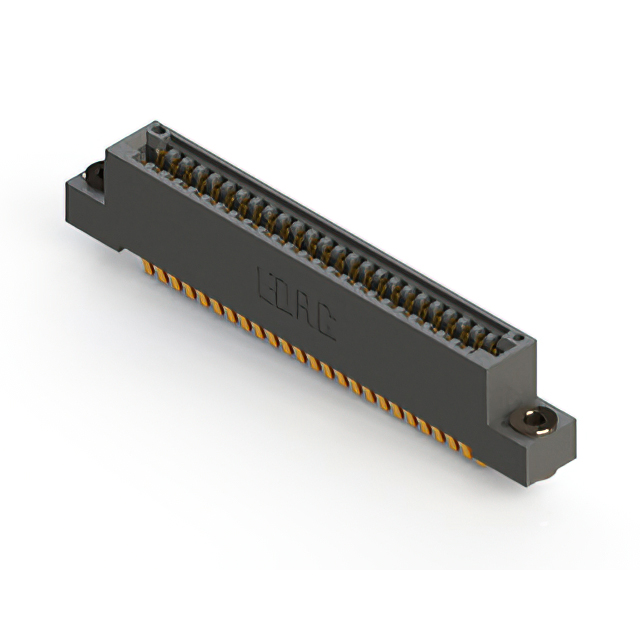

395-050-560-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-050-560-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-050-560-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-050 Series
...
| Part | Gender | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Pitch [x] | Pitch [x] | Material - Insulation | Read Out | Termination | Card Type | Color | Contact Type | Number of Positions | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Flange Feature | Mounting Type | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 2 | 10 Áin | 0.25 Ám | 2 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Dual | Solder Eyelet(s) | Non Specified - Dual Edge | Black | Cantilever | 50 | 25 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Gold | |||||
EDAC Inc. | Female | 1 | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Single | Solder | Non Specified - Single Edge | Black | Cantilever | 50 | 50 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Gold | |||||
EDAC Inc. | Female | 1 | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Single | Wire Wrap | Non Specified - Single Edge | Black | Cantilever | 50 | 50 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Floating Bobbin Flush Mount | Through Hole | Gold | 0.116 in | 2.95 mm | |||
EDAC Inc. | Female | 1 | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Single | Wire Wrap | Non Specified - Single Edge | Black | Cantilever | 50 | 50 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Through Hole | Gold | Card Guides | ||||
EDAC Inc. | Female | 2 | 10 Áin | 0.25 Ám | 2 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Dual | Solder | Non Specified - Dual Edge | Black | Cantilever | 50 | 25 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Flush Mount Side Opening Unthreaded | Board Edge Straddle Mount | Gold | 0.128 " | 3.25 mm | Card Extender | ||
EDAC Inc. | Female | 2 | 10 Áin | 0.25 Ám | 2 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Dual | Solder | Non Specified - Dual Edge | Black | Cantilever | 50 | 25 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Flush Mount Top Opening Unthreaded | Through Hole Right Angle | Gold | 0.156 in | 3.96 mm | |||
EDAC Inc. | Female | 1 | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Single | Solder | Non Specified - Single Edge | Black | Cantilever | 50 | 50 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Gold | |||||
EDAC Inc. | Female | 2 | 10 Áin | 0.25 Ám | 2 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Dual | Wire Wrap | Non Specified - Dual Edge | Black | Cantilever | 50 | 25 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Gold | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | 2 | 10 Áin | 0.25 Ám | 2 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Dual | Solder | Non Specified - Dual Edge | Black | Cantilever | 50 | 25 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Floating Bobbin Flush Mount | Board Edge Straddle Mount | Gold | 0.116 in | 2.95 mm | Card Extender | ||
EDAC Inc. | Female | 1 | 10 Áin | 0.25 Ám | 1 | 2.54 mm | 0.1 in | Polyester Thermoplastic | Single | Solder | Non Specified - Single Edge | Black | Cantilever | 50 | 50 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Copper Alloy | Flush Mount Side Opening Unthreaded | Through Hole | Gold | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.87 | |
Description
General part information
395-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
