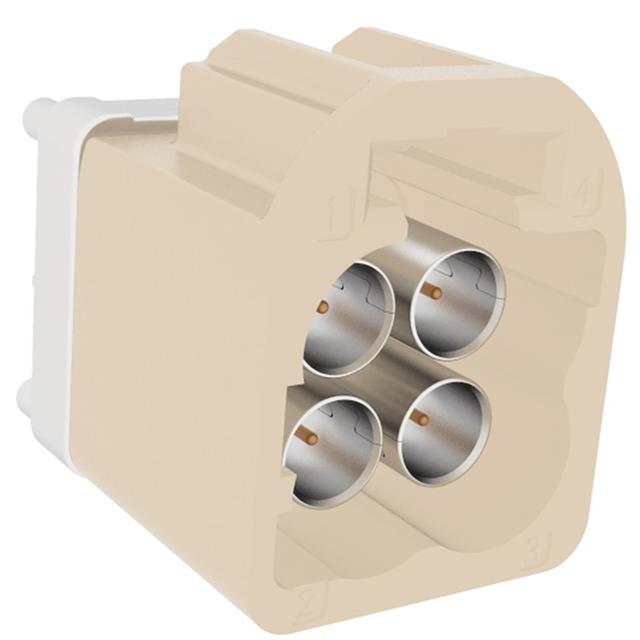

FM4-NBSP-PCB-1

Active

AMPHENOL RF

AUTOMATE TYPE A MINI-FAKRA QUAD

Search across all available documentation for this part.

Active

AMPHENOL RF

AUTOMATE TYPE A MINI-FAKRA QUAD

Technical Specifications

Parameters and characteristics for this part

Specification	FM4-NBSP-PCB-1

Body Finish	Tin
Body Material	Zinc Alloy
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	Quadraxial, Miniature Coaxial, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code B
Frequency - Max [Max]	9 GHz
Housing Color	Cream
Impedance	50 Ohms
Mating Cycles	25
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

AUTOMATE TYPE A MINI-FAKRA QUAD

Part	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Housing Color	Features	Center Contact Material	Fastening Type	Number of Ports	Contact Termination	Connector Type	Body Finish	Dielectric Material	Center Contact Plating	Mounting Type	Mating Cycles	Shield Termination	Frequency - Max [Max]	Connector Style
AMPHENOL RF FM4-NBSP-PCB-1	Zinc Alloy	-40 °C	105 ░C	50 Ohms	Cream	Code B	Copper Alloy	Latch Lock	1	Solder	Male Pin, Plug	Tin	Liquid Crystal Polymer (LCP)	Gold	Through Hole	25	Solder	9 GHz	Fakra, Miniature Coaxial, Quadraxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1250	$ 5.48

General part information

Miniature Coaxial, Fakra, Quadraxial Connector Plug, Male Pin 50 Ohms Through Hole Solder

Technical documentation and resources

No documents available
