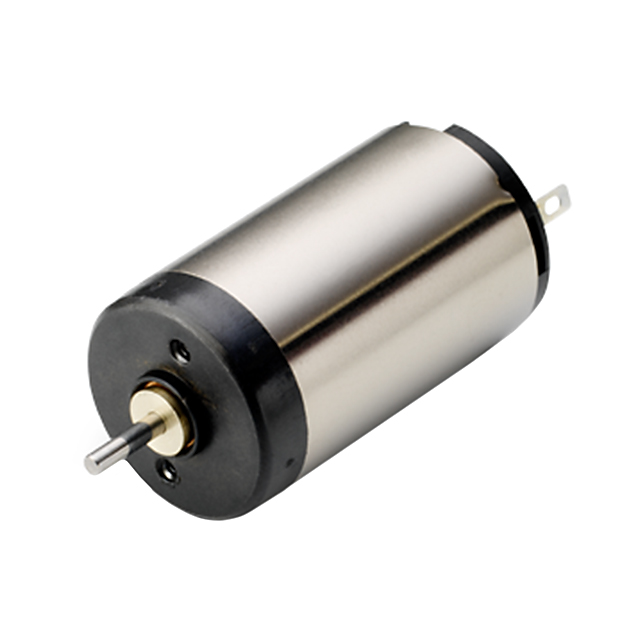

16N28-207E.201

Active

Portescap

STANDARD MOTOR 10800 RPM 12V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 10800 RPM 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

STANDARD MOTOR 9700 RPM 7.5V

Part	Termination Style	Voltage - Rated	Motor Type	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Power - Rated	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Function	Mounting Hole Spacing	Mounting Hole Spacing	Weight	Weight	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Type	RPM
Portescap 16N28-210E.1	Solder Tab	7.5 VDC	Brushed	16 mm	Round	0.629 "	0.059 in	1.5 mm	-30 ░C	85 °C	1.7 W	2.9 mNm	0.41 oz-in	Standard	10 mm	0.394 in	24.04 g	0.053 lb	7.5 mm	0.295 in	DC Motor	9700 RPM
Portescap 16N28-207E.201	Solder Tab	12 VDC	Brushed	16 mm	Round	0.629 "	0.059 in	1.5 mm	-30 ░C	85 °C	1.7 W	2.4 mNm	0.339 oz-in	Standard	10 mm	0.394 in	24.04 g	0.053 lb	7.5 mm	0.295 in	DC Motor	10800 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 10800 RPM 1.7W 12VDC
