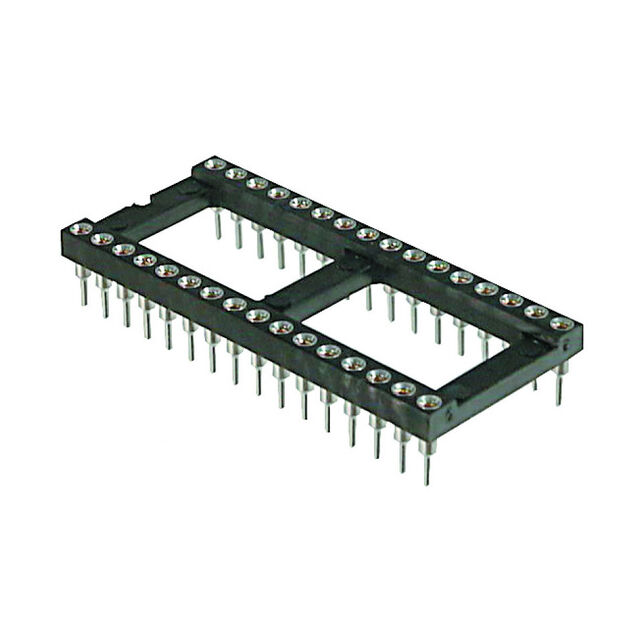

AR 32-HZL-TT
ActiveAssmann WSW Components
CONN IC DIP SOCKET 32POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AR 32-HZL-TT
ActiveAssmann WSW Components
CONN IC DIP SOCKET 32POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AR 32-HZL-TT |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) [custom] | 2 x 16 |
| Number of Positions or Pins (Grid) [custom] | 32 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 0.11 in |
| Termination Post Length | 2.78 mm |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.77 | |
| 14 | $ 0.65 | |||
| 28 | $ 0.62 | |||
| 56 | $ 0.61 | |||
| 112 | $ 0.58 | |||
| 252 | $ 0.53 | |||
| 504 | $ 0.48 | |||
| 1008 | $ 0.43 | |||
| 2506 | $ 0.39 | |||
Description
General part information
AR 32-HZ Series
32 (2 x 16) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole
