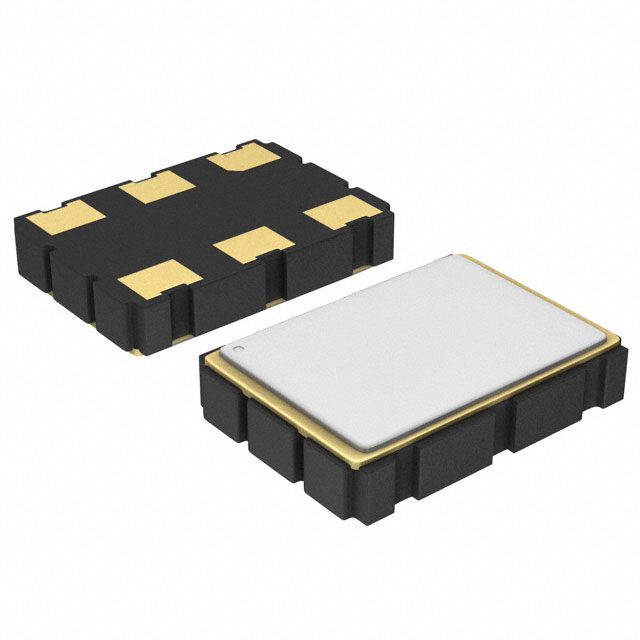

SG3225HBN 125.000000M-CJGA3

Active

EPSON

XTAL OSC XO 125 MHZ HCSL SMD

Search across all available documentation for this part.

Active

EPSON

XTAL OSC XO 125 MHZ HCSL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SG3225HBN 125.000000M-CJGA3	SG3225HBN Series

Base Resonator	Crystal	Crystal
Current - Supply (Disable) (Max) [Max]	15 mA	15 mA
Current - Supply (Max) [Max]	35 mA	35 mA
Frequency	125 MHz	100 - 250 MHz
Frequency Stability	50 ppm	50 - 100 ppm
Function	Enable/Disable	Enable/Disable
Height - Seated (Max) [Max]	1.2 mm	1.2 mm
Height - Seated (Max) [Max]	0.047 in	0.047 in
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	HCSL	HCSL
Package / Case	6-SMD, No Lead	6-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	2.5 mm	2.5 mm
Size / Dimension [y]	0.098 in	0.098 in
Supplier Device Package	-	3.2x2.5, 6-SMD
Type	XO (Standard)	XO (Standard)
Voltage - Supply	3.3 V	3.3 V

XTAL OSC XO 100 MHZ HCSL SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Frequency Stability	Current - Supply (Max) [Max]	Output	Package / Case	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Supplier Device Package	Current - Supply (Disable) (Max) [Max]	Function	Type	Base Resonator	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
EPSON SG3225HBN 100.000000M-CLGA0	85 °C	-40 °C	3.3 V	100 ppm	35 mA	HCSL	6-SMD, No Lead	100 MHz	1.2 mm	0.047 in	Surface Mount	3.2x2.5, 6-SMD	15 mA	Enable/Disable	XO (Standard)	Crystal	3.2 mm	2.5 mm	0.126 in	0.098 in
EPSON SG3225HBN 250.000000M-CJGA6	85 °C	-40 °C	3.3 V	50 ppm	35 mA	HCSL	6-SMD, No Lead	250 MHz	1.2 mm	0.047 in	Surface Mount		15 mA	Enable/Disable	XO (Standard)	Crystal	3.2 mm	2.5 mm	0.126 in	0.098 in
EPSON SG3225HBN 125.000000M-CJGA3	85 °C	-40 °C	3.3 V	50 ppm	35 mA	HCSL	6-SMD, No Lead	125 MHz	1.2 mm	0.047 in	Surface Mount		15 mA	Enable/Disable	XO (Standard)	Crystal	3.2 mm	2.5 mm	0.126 in	0.098 in
EPSON SG3225HBN 212.500000M-CJGA6	85 °C	-40 °C	3.3 V	50 ppm	35 mA	HCSL	6-SMD, No Lead	212.5 MHz	1.2 mm	0.047 in	Surface Mount	3.2x2.5, 6-SMD	15 mA	Enable/Disable	XO (Standard)	Crystal	3.2 mm	2.5 mm	0.126 in	0.098 in
EPSON SG3225HBN 250.000000M-CJGA0	85 °C	-40 °C	3.3 V	50 ppm	35 mA	HCSL	6-SMD, No Lead	250 MHz	1.2 mm	0.047 in	Surface Mount		15 mA	Enable/Disable	XO (Standard)	Crystal	3.2 mm	2.5 mm	0.126 in	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 4.27

General part information

125 MHz XO (Standard) HCSL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
