Q-0300J00050.5M

Active

Amphenol Custom Cable

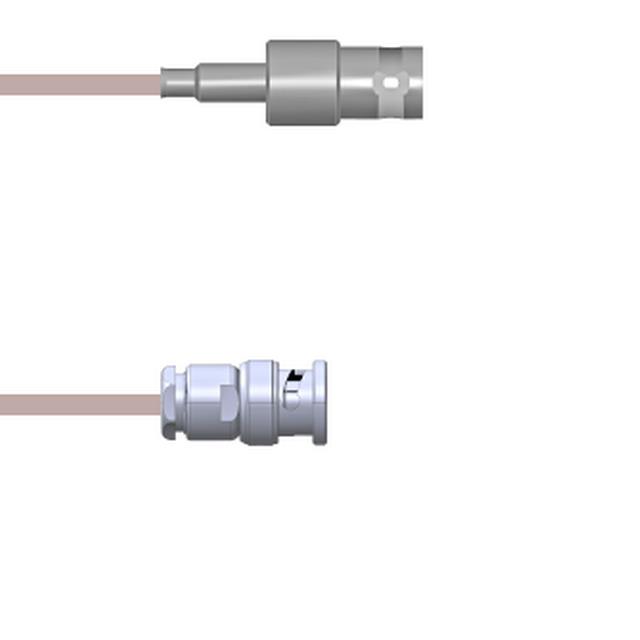

CBL ASSY BNC JACK TO PLUG 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0300J00050.5M

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO PLUG 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0300J00050.5M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-0300J0 Series

Part	2nd Contact Gender	Color	Length	Length	Length	1st Connector Mounting Type	Cable Type	2nd Connector Mounting Type	Overall Impedance	1st Contact Gender	1st Connector	Style	Frequency - Max [Max]	2nd Connector	Features	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0300J0003001M	Male	Black	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	RG-174	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded
Amphenol Custom Cable Q-0300J00050.5M	Male	Copper	50 cm		19.69 "	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded
Amphenol Custom Cable Q-0300J0003084i	Male	Black	2.1 m	7 ft	84 in	Free Hanging (In-Line)	RG-174	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded
Amphenol Custom Cable Q-0300J0003003M	Male	Black	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	RG-174	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded
Amphenol Custom Cable Q-0300J0005003i	Male	Copper	76.2 mm		3 in	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded
Amphenol Custom Cable Q-0300J0005003M	Male	Copper	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded
Amphenol Custom Cable Q-0300J0003.25M	Male	Black				Free Hanging (In-Line)	RG-174	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-0300J0003018i	Male	Black				Free Hanging (In-Line)	RG-174	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0300J0003002M	Male	Black	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	RG-174	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded
Amphenol Custom Cable Q-0300J0005006i	Male	Copper	152.4 mm		6 in	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)	50 Ohms	Female	BNC Jack	BNC to BNC	4 GHz	BNC Plug	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.84
		25	$ 72.40
		50	$ 70.95
		100	$ 69.51
		250	$ 68.07

Description

General part information

Q-0300J0 Series

Cable Assembly Coaxial BNC to BNC RG-316 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
