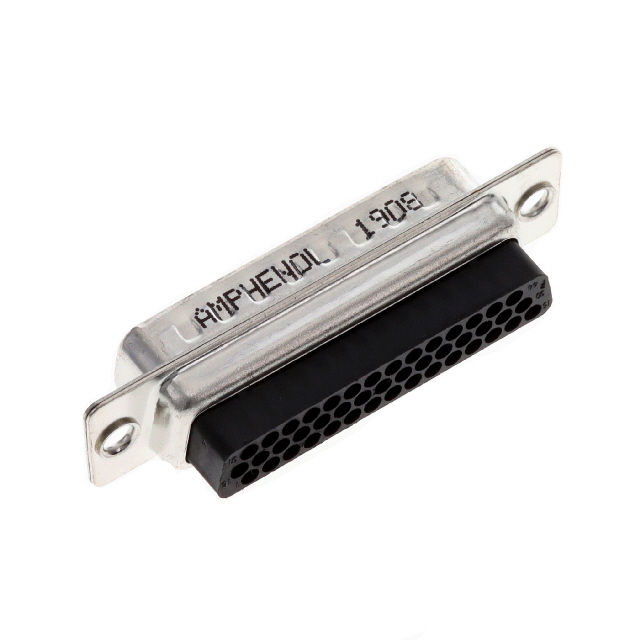

L777HRB44P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD HOUSING PLUG 44POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L777HRB44P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD HOUSING PLUG 44POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L777HRB44P |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 44 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout [custom] | B, DB |
| Shell Size, Connector Layout [x] | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.78 | |
| 10 | $ 2.89 | |||
| 25 | $ 2.60 | |||
| 40 | $ 2.47 | |||
| 80 | $ 2.29 | |||
| 230 | $ 2.04 | |||
| 440 | $ 1.91 | |||
| 945 | $ 1.77 | |||
| 2400 | $ 1.61 | |||
Description
General part information
L777HRB44 Series
Plug for Male Contacts Housing D-Sub, High Density Connector 44 Position
