125SH-B-05-TS

Active

Adam Tech

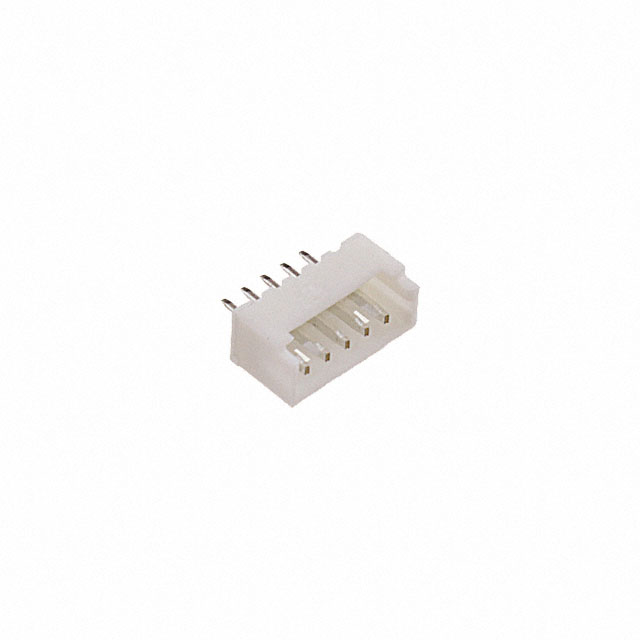

CONN HEADER VERT 5POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

125SH-B-05-TS

Active

Adam Tech

CONN HEADER VERT 5POS 1.25MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.32
		10	$ 0.24
		100	$ 0.18
		500	$ 0.15
		1000	$ 0.14
		5000	$ 0.12
		10000	$ 0.11

Description

General part information

125SH-B Series

Connector Header Through Hole 5 position 0.049" (1.25mm)

Documents

Technical documentation and resources

Datasheet

ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Medical Industry Brochure

Datasheet

Specification	125SH-B-05-TS	125SH-B Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	-	0.083 "
Contact Length - Mating	-	2.1 mm
Contact Length - Mating [custom]	2.4 mm	2.4 mm
Contact Length - Mating [custom]	0.094 in	0.094 in
Contact Length - Post	0.091 in	0.091 in
Contact Length - Post	2.3 mm	2.3 mm
Contact Material	Brass	Brass
Contact Shape	Rectangular	Rectangular
Contact Type	Male Blade	Male Blade
Fastening Type	Friction Lock	Friction Lock
Features	-	Solder Retention
Insulation Color	Natural	Natural, Ivory
Insulation Height	-	0.134 - 0.183 in
Insulation Height	-	3.4 - 4.65 mm
Insulation Height [z]	0.165 in	0.165 in
Insulation Height [z]	4.2 mm	4.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Right Angle, Surface Mount, Through Hole
Number of Positions	-	2 - 10
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Contact Length	0.232 in	0.232 in
Overall Contact Length	5.9 mm	5.9 mm
Pitch - Mating	1.25 mm	1.25 mm
Pitch - Mating	0.049 in	0.049 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	125 VAC	100 - 250 VAC

Part

Operating Temperature [Max]

Operating Temperature [Min]

Insulation Height

Features

Shrouding

Number of Positions Loaded

Pitch - Mating

Contact Type

Contact Finish - Post

Contact Shape

Material Flammability Rating

Insulation Color

Contact Material

Connector Type

Voltage Rating

Fastening Type

Mounting Type

Number of Rows

Style

Termination

Contact Length - Mating [x]

Contact Length - Mating

Number of Positions

Insulation Height [z]

Contact Length - Post

Overall Contact Length

Insulation Material

Contact Length - Mating [custom]

Adam Tech

125SH-B-05-TR-SMT-T/R

85 °C

-40 °C

0.134 in

3.4 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

100 VAC

Friction Lock

Surface Mount, Right Angle

Board to Cable/Wire

Solder

Adam Tech

125SH-B-02-TS-SMT-T/R

85 °C

-40 °C

0.183 in

4.65 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Ivory

Brass

Header

250 VAC

Friction Lock

Surface Mount

Board to Cable/Wire

Solder

0.083 "

2.1 mm

Adam Tech

125SH-B-05-TS-SMT-T/R

85 °C

-40 °C

0.183 in

4.65 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Ivory

Brass

Header

250 VAC

Friction Lock

Surface Mount

Board to Cable/Wire

Solder

0.083 "

2.1 mm

Adam Tech

125SH-B-09-TS

85 °C

-40 °C

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

125 VAC

Friction Lock

Through Hole

Board to Cable/Wire

Solder

0.165 in

4.2 mm

0.091 in

2.3 mm

0.232 in

5.9 mm

Polyamide (PA66), Nylon 6/6

2.4 mm

0.094 in

Adam Tech

125SH-B-03-TS

85 °C

-40 °C

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

125 VAC

Friction Lock

Through Hole

Board to Cable/Wire

Solder

0.165 in

4.2 mm

0.091 in

2.3 mm

0.232 in

5.9 mm

Polyamide (PA66), Nylon 6/6

2.4 mm

0.094 in

Adam Tech

125SH-B-06-TS-SMT-T/R

85 °C

-40 °C

0.183 in

4.65 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Ivory

Brass

Header

250 VAC

Friction Lock

Surface Mount

Board to Cable/Wire

Solder

0.083 "

2.1 mm

Adam Tech

125SH-B-09-TS-SMT-T/R

85 °C

-40 °C

0.183 in

4.65 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Ivory

Brass

Header

250 VAC

Friction Lock

Surface Mount

Board to Cable/Wire

Solder

0.083 "

2.1 mm

Adam Tech

125SH-B-09-TR-SMT-T/R

85 °C

-40 °C

0.134 in

3.4 mm

Solder Retention

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

100 VAC

Friction Lock

Surface Mount, Right Angle

Board to Cable/Wire

Solder

Adam Tech

125SH-B-06-TS

85 °C

-40 °C

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

125 VAC

Friction Lock

Through Hole

Board to Cable/Wire

Solder

0.165 in

4.2 mm

0.091 in

2.3 mm

0.232 in

5.9 mm

Polyamide (PA66), Nylon 6/6

2.4 mm

0.094 in

Adam Tech

125SH-B-08-TS

85 °C

-40 °C

Shrouded - 4 Wall

All

1.25 mm

0.049 in

Male Blade

Tin

Rectangular

UL94 V-0

Natural

Brass

Header

125 VAC

Friction Lock

Through Hole

Board to Cable/Wire

Solder

0.165 in

4.2 mm

0.091 in

2.3 mm

0.232 in

5.9 mm

Polyamide (PA66), Nylon 6/6

2.4 mm

0.094 in

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Features	Shrouding	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Contact Shape	Material Flammability Rating	Insulation Color	Contact Material	Connector Type	Voltage Rating	Fastening Type	Mounting Type	Number of Rows	Style	Termination	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Material	Contact Length - Mating [custom]	Contact Length - Mating [custom]
Adam Tech 125SH-B-05-TR-SMT-T/R	85 °C	-40 °C	0.134 in	3.4 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	100 VAC	Friction Lock	Surface Mount, Right Angle	1	Board to Cable/Wire	Solder
Adam Tech 125SH-B-02-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm	2
Adam Tech 125SH-B-05-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm
Adam Tech 125SH-B-09-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder			9	0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
Adam Tech 125SH-B-03-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder				0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
Adam Tech 125SH-B-06-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm	6
Adam Tech 125SH-B-09-TS-SMT-T/R	85 °C	-40 °C	0.183 in	4.65 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Ivory	Brass	Header	250 VAC	Friction Lock	Surface Mount	1	Board to Cable/Wire	Solder	0.083 "	2.1 mm	9
Adam Tech 125SH-B-09-TR-SMT-T/R	85 °C	-40 °C	0.134 in	3.4 mm	Solder Retention	Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	100 VAC	Friction Lock	Surface Mount, Right Angle	1	Board to Cable/Wire	Solder			9
Adam Tech 125SH-B-06-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder			6	0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
Adam Tech 125SH-B-08-TS	85 °C	-40 °C				Shrouded - 4 Wall	All	1.25 mm	0.049 in	Male Blade	Tin	Rectangular	UL94 V-0	Natural	Brass	Header	125 VAC	Friction Lock	Through Hole	1	Board to Cable/Wire	Solder			8	0.165 in	4.2 mm	0.091 in	2.3 mm	0.232 in	5.9 mm	Polyamide (PA66), Nylon 6/6	2.4 mm	0.094 in
