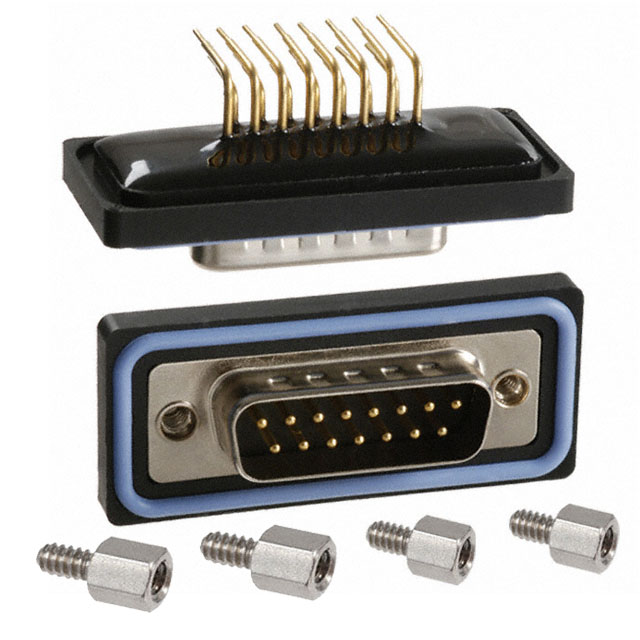

A-DS 15 AA-WP

Active

Assmann WSW Components

CONN D-SUB PLUG 15POS R/A SLDR

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB PLUG 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	A-DS 15 AA-WP

Backset Spacing	0.244 "
Backset Spacing	6.2 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Features	Grounding Indents
Flange Feature	Female Screwlock, Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2
Termination	Solder

Part	Number of Rows	Contact Finish	Number of Positions	Connector Style	Backset Spacing	Backset Spacing	Flange Feature	Features	Contact Type	Termination	Connector Type	Color	Dielectric Material	Mounting Type	Ingress Protection	Shell Size, Connector Layout	Contact Material
Assmann WSW Components A-DS 15 AA-WP	2	Gold	15	D-Sub	0.244 "	6.2 mm	Female Screwlock Mating Side	Grounding Indents	Signal	Solder	Male Pins Plug	Black	Glass Filled Nylon Polyamide (PA)	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	2	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
