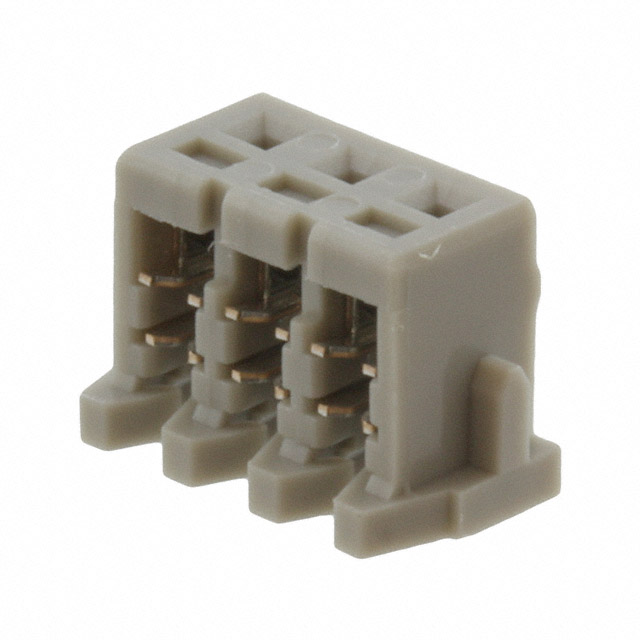

03KR-6H-P

Active

JST Sales America Inc.

CONN SOCKET 3POS IDC 26AWG TIN

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN SOCKET 3POS IDC 26AWG TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03KR-6H-P	03KR Series

Cable Termination	IDC	IDC
Color	Gray	Gray, Natural
Connector Type	Socket	Socket
Contact Finish	Tin	Tin
Contact Type	Female Socket	Female Socket
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Rows	1	1
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Wire Gauge	26 AWG	26 AWG
Wire Type	Discrete	Discrete

CONN SOCKET 3POS IDC 26AWG TIN

Part	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Cable Termination	Color	Contact Finish	Contact Type	Wire Type	Mounting Type	Wire Gauge
JST Sales America Inc. 03KR-6H-P	0.079 in	2 mm	Socket	1	IDC	Gray	Tin	Female Socket	Discrete	Free Hanging (In-Line)	26 AWG
JST Sales America Inc. 03KR-D6S-P	0.079 in	2 mm	Socket	1	IDC	Natural	Tin	Female Socket	Discrete	Free Hanging (In-Line), Right Angle	26 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Rectangular Socket Connector IDC Tin 26 AWG
