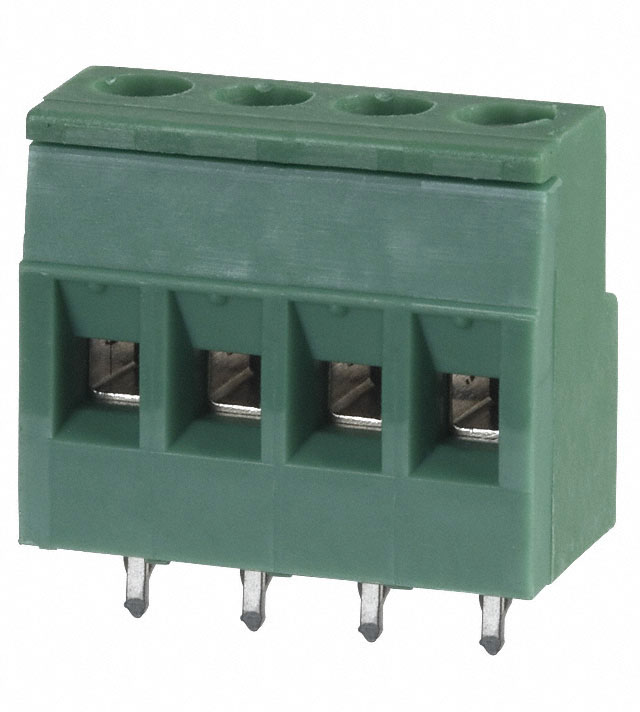

FIXED TERMINAL BLOCKS 4P 5.08MM 90DEG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1730638
ActivePhoenix Contact
FIXED TERMINAL BLOCKS 4P 5.08MM 90DEG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1730638 | EMKDS Series |
|---|---|---|
| Color | Green | Green |
| Current | 10 A | 10 A |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board | Horizontal with Board |
| Mounting Type | Through Hole | Press Fit, Through Hole |
| Number of Levels | 1 | 1 |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Positions Per Level | 4 | 3 - 8 |
| Screw Thread | M3 | M2, M3 |
| Torque - Screw [Max] | 0.6 Nm | 0.25 - 0.6 Nm |
| Torque - Screw [Max] | 5.3 Lb-In | 2.2 - 5.3 Lb-In |
| Torque - Screw [Min] | 4.4 Lb-In | 1.9 - 4.4 Lb-In |
| Torque - Screw [Min] | 0.5 Nm | 0.22 - 0.5 Nm |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 12 AWG | 12 - 14 AWG |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
EMKDS Series
Fixed Terminal Blocks 4P 5.08mm 90DEG
| Part | Mounting Type | Current | Voltage | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Positions Per Level | Housing Material | Mating Orientation | Screw Thread | Number of Levels | Color | Pitch [x] | Pitch [x] | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1897759 | Press Fit | 10 A | 300 V | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 8 | Polyamide (PA), Nylon | Horizontal with Board | M2 | 1 | Green | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 14 AWG | 30 AWG |
Phoenix Contact 1730638 | Through Hole | 10 A | 300 V | 5.3 Lb-In | 0.6 Nm | 0.5 Nm | 4.4 Lb-In | 4 | Polyamide (PA), Nylon | Horizontal with Board | M3 | 1 | Green | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 12 AWG | 30 AWG |
Phoenix Contact 1730625 | Through Hole | 10 A | 300 V | 5.3 Lb-In | 0.6 Nm | 0.5 Nm | 4.4 Lb-In | 3 | Polyamide (PA), Nylon | Horizontal with Board | M3 | 1 | Green | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 12 AWG | 30 AWG |
