Technical Specifications
Parameters and characteristics for this part
| Specification | 6304FE 877U500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.74 mm |
| Jacket (Insulation) Diameter [diameter] | 0.226 in |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Sound, Security |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 365.33 | |
| 2 | $ 347.43 | |||
| 3 | $ 337.30 | |||
| 5 | $ 324.90 | |||
| 7 | $ 316.93 | |||
| 10 | $ 308.66 | |||
| 25 | $ 288.21 | |||
Description
General part information
6304FE Series

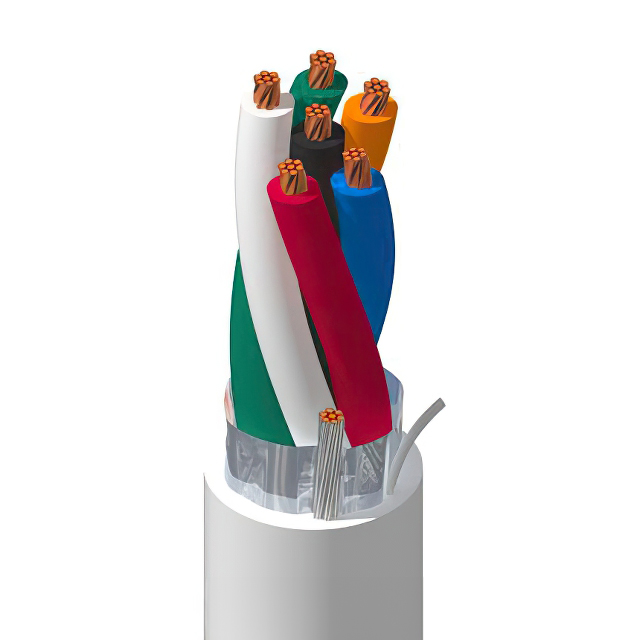

6 Conductor Multi-Conductor Cable Natural 18 AWG Foil 500.0' (152.4m)
Documents
Technical documentation and resources
